#PAP9Q - Modular Large LED Neon MW/Ring Indicator

Modular Large LED Neon MW/Ring Indicator (Top View)
Modular Large LED Neon MW/Ring Indicator (Top View) Modular Large LED Neon MW/Ring Indicator (Side View)

SKU: #PAP9Q
Price: $27.95

In Stock

Product Highlights
  • Large 20mm LED
  • Illuminates on Ringing and Neon Message Waiting
Warranty & Terms
Product Details

Modular Large LED Neon MW/Ring Indicator

This is REALLY bright!

Much brighter than a beehive lamp... this huge 20mm (3/4 inch) diameter LED actually has six LEDs inside of it. It's very bright!

This indicator gets bridged across (in parallel with) an analog POTS line or station port. The Large LED will flicker during ring voltage and stays on steady when Neon Message Waiting Voltage is being sent.

IMPORTANT NOTE: A real Neon Lamp needs about 80VDC (minimum) to glow. This solid state LED device will trigger at a much lower 50VDC used on some modern phone systems. This is an electronic device (doesn't use neon gas), and works on neon message waiting that's 50 to 140VDC.

LED lights with Ring Voltage over 40VAC and Message Waiting Voltage over 50VDC.

Modular Large LED Neon MW/Ring Indicator Specs:

  • Connects bridged ACROSS the line (connect either jack)
  • Large 20mm LED to indicate Ringing and Neon Message Waiting
  • 0.5 REN ring load
  • Detects ringing from 40-150VAC, 20-30 Hz
  • Line Powered Indicator - no power supply required.
  • Includes double stick tape for mounting.

Photo Gallery

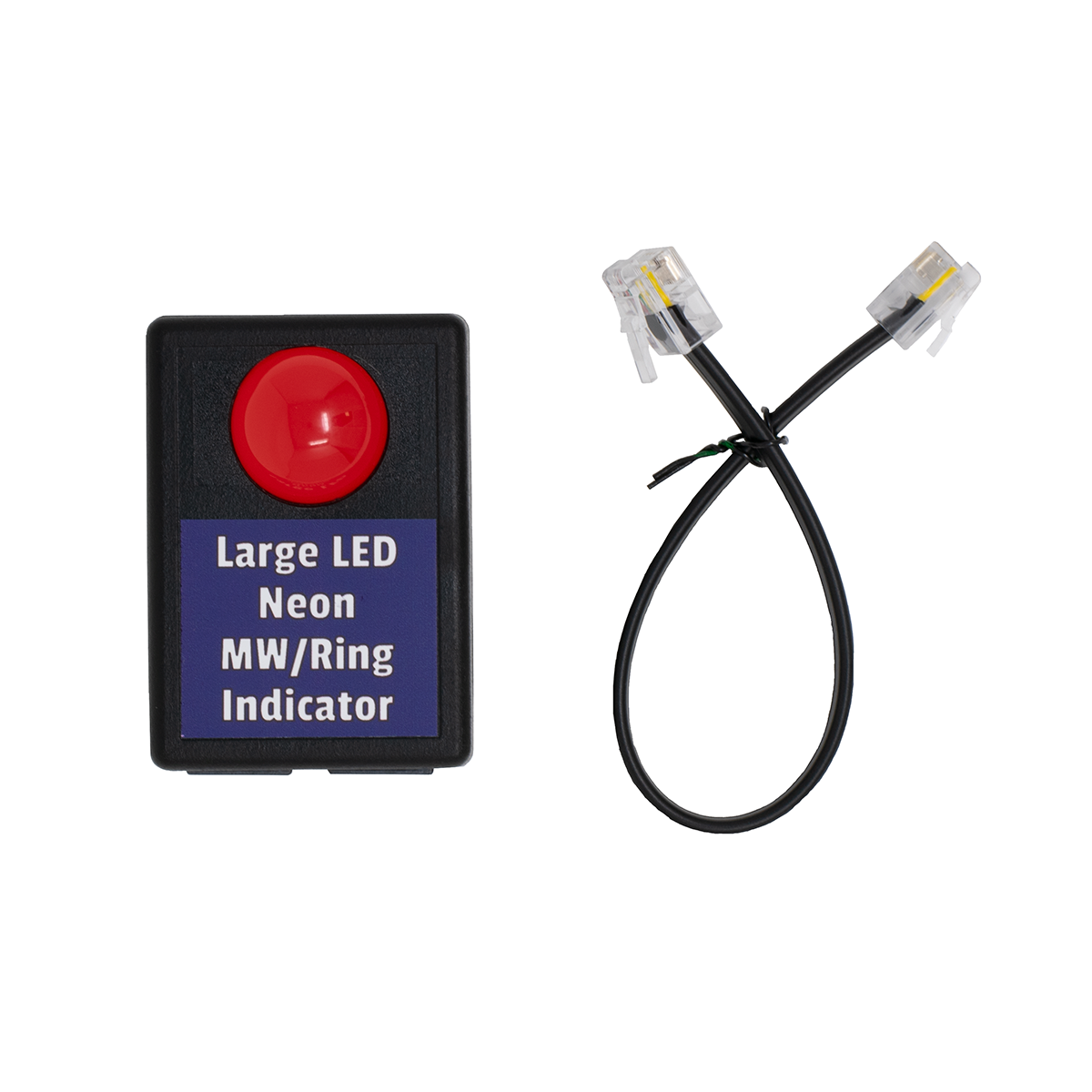

Modular Large LED Neon MW/Ring Indicator (Top View)
Modular Large LED Neon MW/Ring Indicator (Top View)

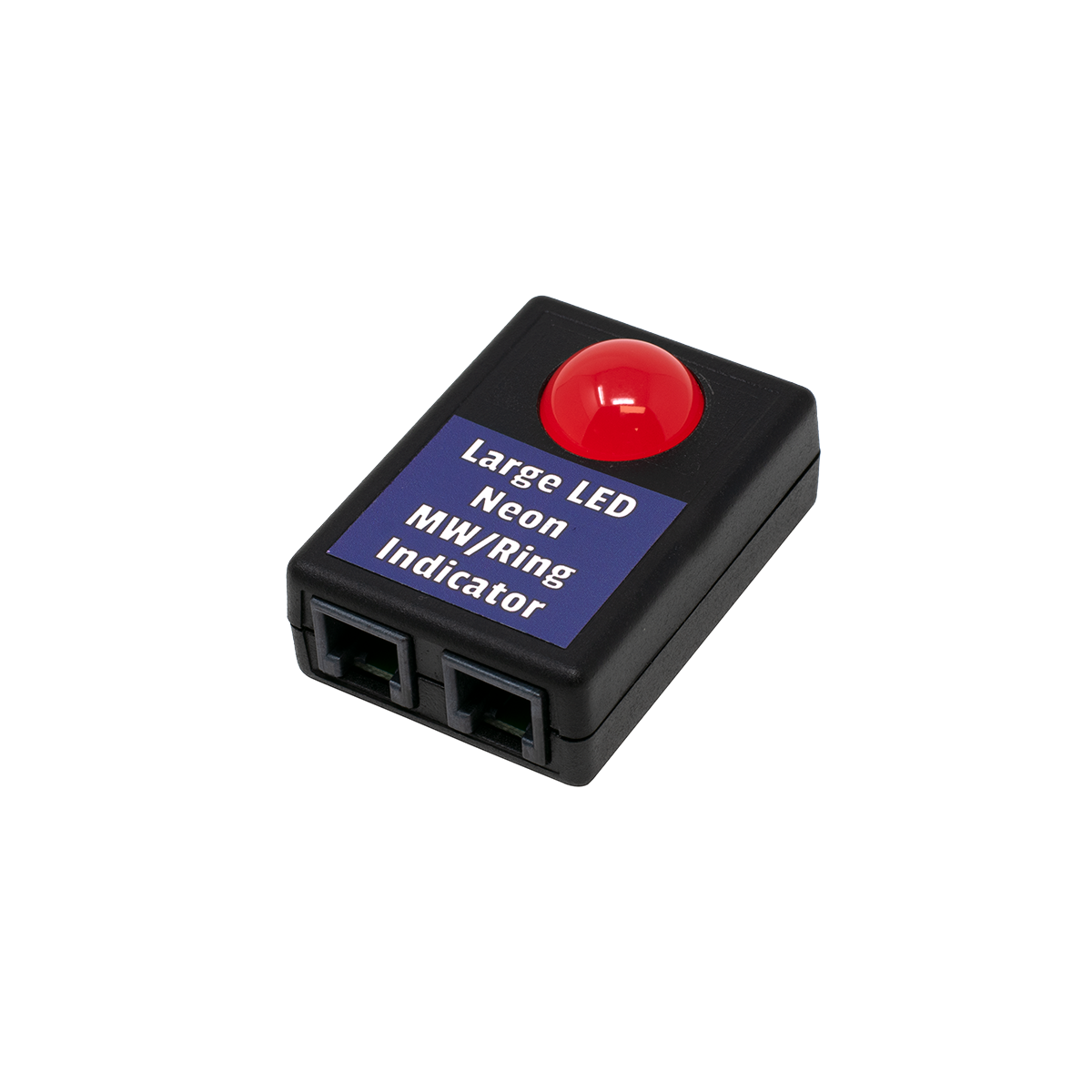

Modular Large LED Neon MW/Ring Indicator (Side View)
Modular Large LED Neon MW/Ring Indicator (Side View)
