Help#KIT4C - MLP-030T 30V Screw Terminal Surge Protector
SKU: #KIT4C
Price: $29.95
In Stock
Product Highlights
- Screw Terminal Lightning Protector
- 30V Maximum Voltage (12 / 24V Signals)
- Self-Resetting Fuse
Warranty & Terms
- 1 Year Warranty
- 30-Day Money Back Guarantee
- See Full Warranty / Ordering Terms
Product Details
MLP-030T 1 Pair Data 30V Terminal Strip Lightning Protector
For Data (such as RS-232, 12V or 24V signals) and other lines up to 30V.
The MLP-030T protects the equipment when the voltage on the pair rises above 30V. It also opens the line when the current goes over 150ma. When the voltage or current goes back below the threshold, the MLP-030T automatically resets.
You should order a Ground Lug to attach the ground wire to the screw on the side, or you can order a Wall Mount Ground Bus & Lug to mount the MLP-030T to the wall with up to 6 Protectors (for 6 Lines).
If the line doesn't have ring voltage, use one of our lower voltage MLP Protectors. If you don't know the voltage on the line (and there is no ring voltage), put a DC volt meter across the pair to determine the voltage that's on the line normally, then choose a protector that has a higher voltage threshold than what you read (by at least a couple of volts).
Our MLP Protectors come in the following thresholds: 14V, 21V, 30V, 56V, 70V, 110V, 123V and 270V.
You'll need one Protector for each pair.
If you're putting this on a line going to another building (OPX), be sure to put them at BOTH ENDS of the cable leaving the buildings!
See our Maximum Lightning Protection Knowledgebase article for more technical details.

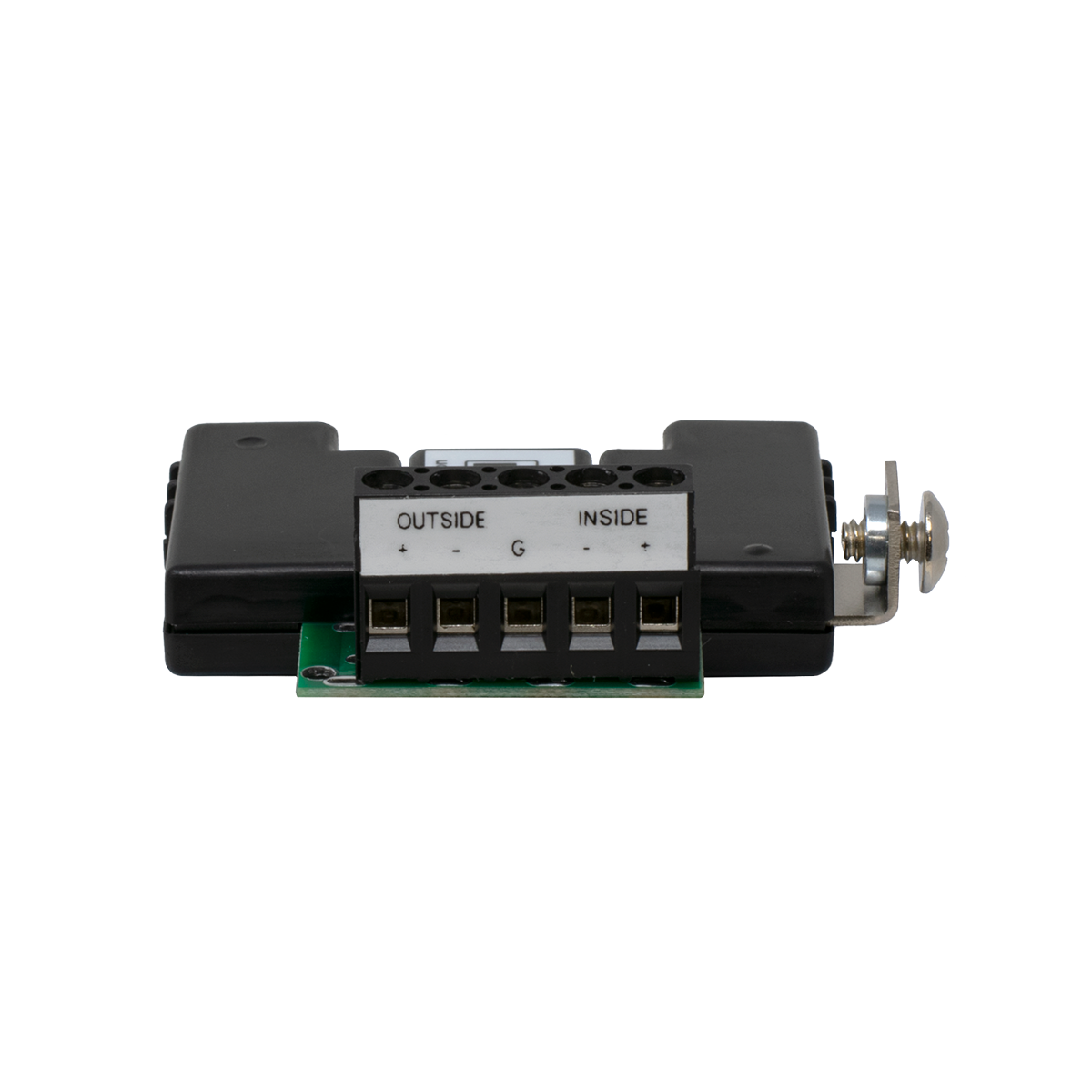

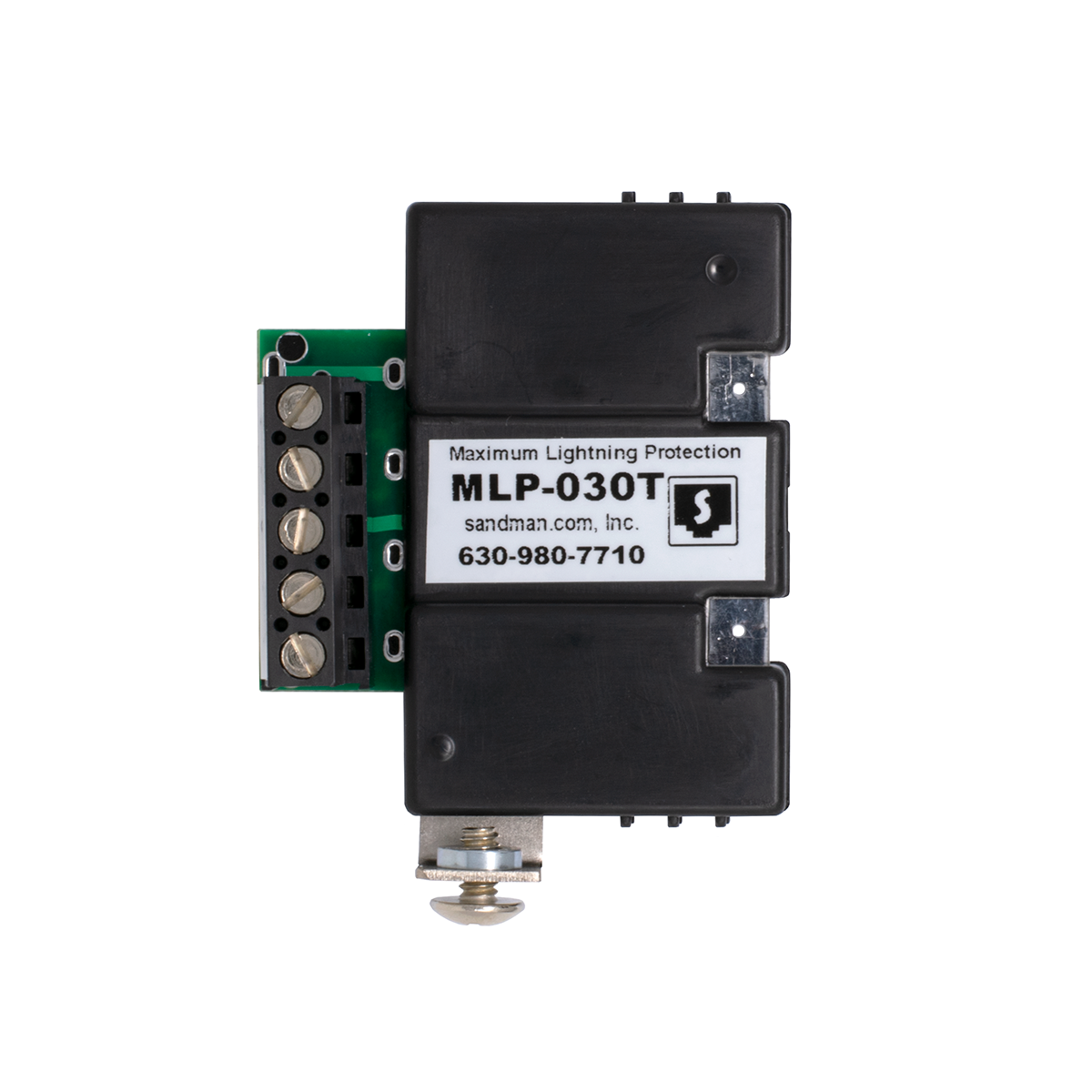

Photo Gallery
