#KIT1Q - MLP-030 30V 66 Block Surge Protector

MLP-030 12-24V 1 Pair Data Lightning Protector (Top View)
MLP-030 12-24V 1 Pair Data Lightning Protector (Top View) MLP-030 12-24V 1 Pair Data Lightning Protector (Front View) MLP-030 12-24V 1 PR DATA PROTE

SKU: #KIT1Q
Price: $20.95

In Stock

Product Highlights
  • 66 Block Lightning Protector
  • 30V Maximum Voltage (12 / 24V Signals)
  • Self-Resetting Fuse
Warranty & Terms
Product Details

MLP-030 1 Pair Data 66 Block Lightning Protector

For Data (such as RS-232, 12V or 24V signals) and other lines up to 30V.

The MLP-030 protects the equipment when the voltage on the pair rises above 30V. It also opens the line when the current goes over 150ma. When the voltage or current goes back below the threshold, the MLP-030 automatically resets.

If you don't know the voltage on the line (and there is no ring voltage), put a DC volt meter across the pair to determine the voltage that's on the line normally, then choose a protector that has a higher voltage threshold than what you read (by at least a couple of volts).

Our MLP Protectors come in the following thresholds: 14V, 21V, 30V, 56V, 70V, 110V, 123V and 270V.

You'll need one Protector for each pair.

If you're putting this on a line going to another building (OPX), be sure to put them at BOTH ENDS of the cable leaving the buildings!

See our Maximum Lightning Protection Knowledgebase article for more technical details.

Photo Gallery

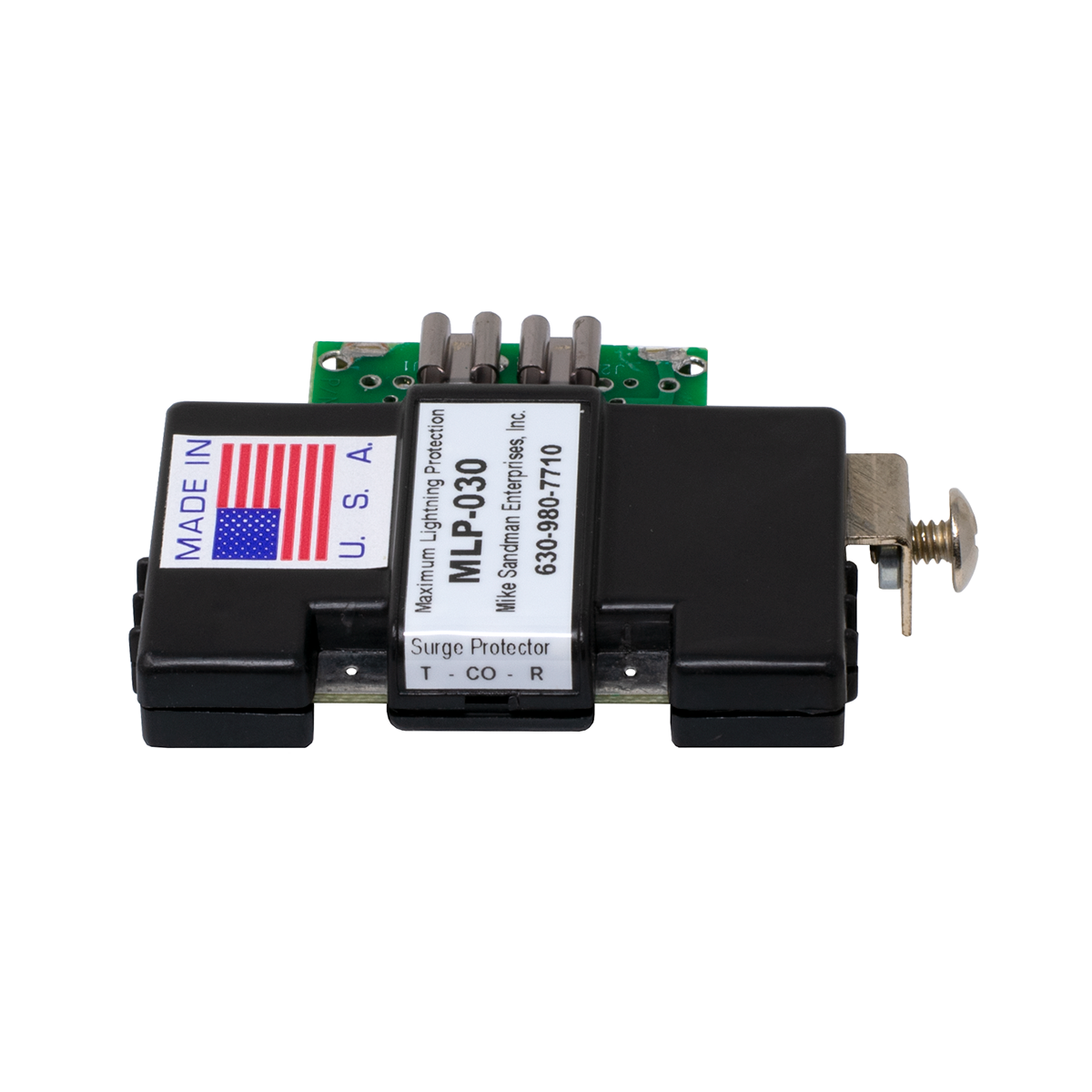

MLP-030 12-24V 1 Pair Data Lightning Protector (Top View)
MLP-030 12-24V 1 Pair Data Lightning Protector (Top View)

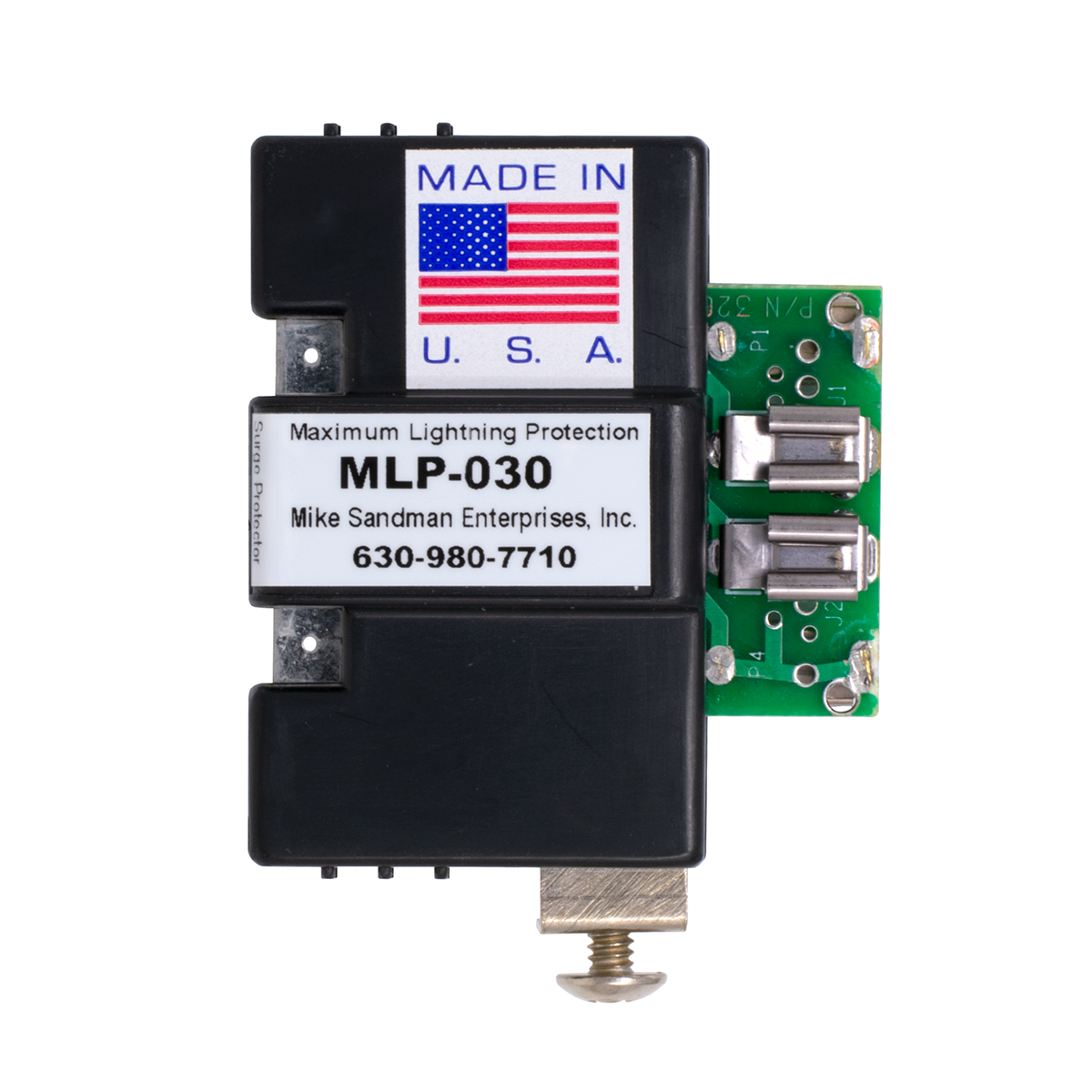

MLP-030 12-24V 1 Pair Data Lightning Protector (Front View)
MLP-030 12-24V 1 Pair Data Lightning Protector (Front View)

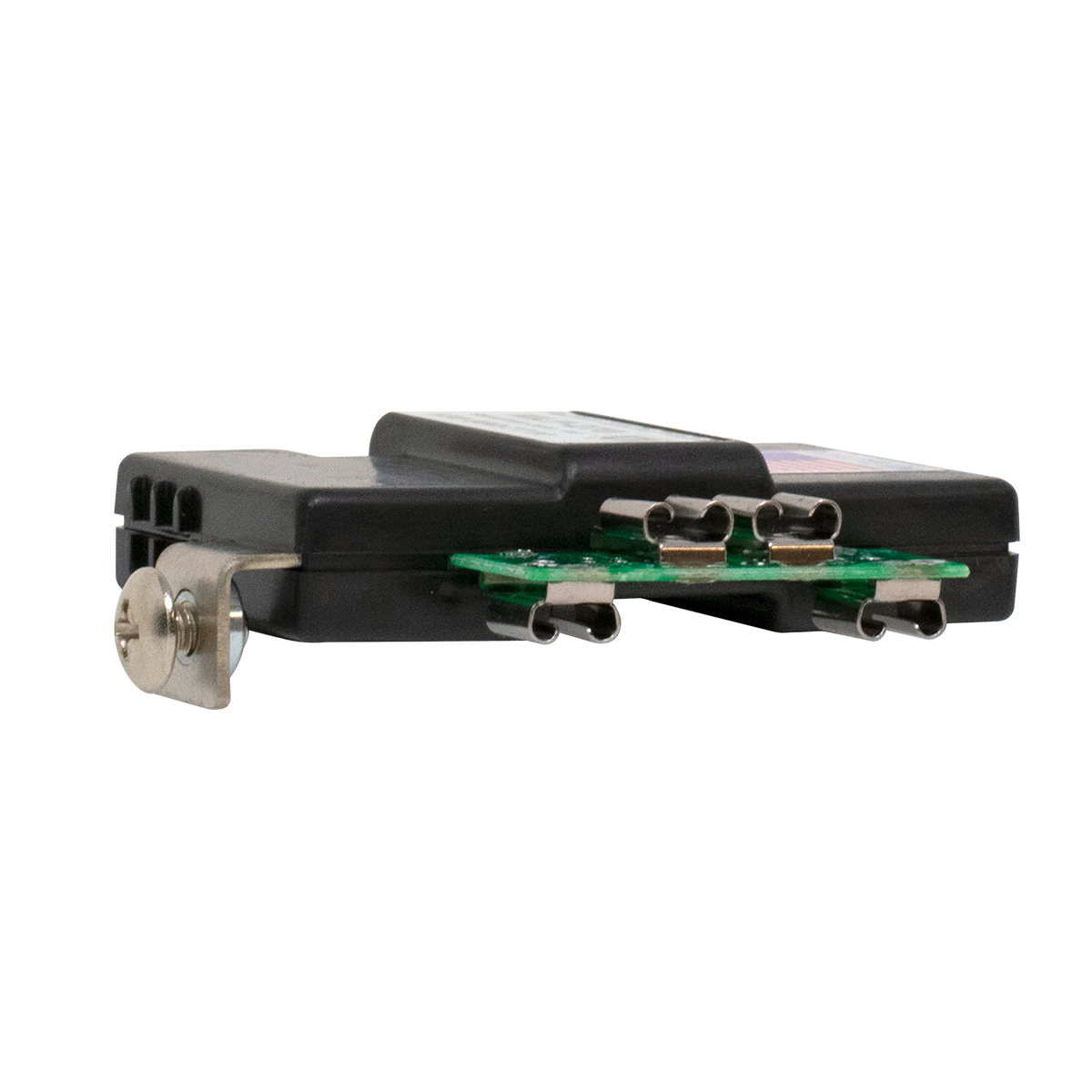

MLP-030 12-24V 1 PR DATA PROTE
MLP-030 12-24V 1 PR DATA PROTE
