#KIT1K - MLP-021 21V 66 Block Surge Protector

MLP-021 T1/E1 1 Pair Lightning Protector (Top View)
MLP-021 T1/E1 1 Pair Lightning Protector (Top View) MLP-021 T1/E1 1 Pair Lightning Protector (Front View) MLP-021 T1/E1 1 PR PROTECTOR

SKU: #KIT1K
Price: $24.95

In Stock

Product Highlights
  • 66 Block Lightning Protector
  • 21V Maximum Voltage (T1/E1)
  • Self-Resetting Fuse
Warranty & Terms
Product Details

MLP-021 1 Pair T1 & E1 21V 66 Block Lightning Protector

For T1 / E1 Lines (1 Pair) and other lines up to 21V.

The MLP-021 protects the equipment when the voltage on the pair rises above 21V. It also opens the line when the current goes over 150ma. When the voltage or current goes back below the threshold, the MLP-021 automatically resets.

If you don't know the voltage on the line (and there is no ring voltage), put a DC volt meter across the pair to determine the voltage that's on the line normally, then choose a protector that has a higher voltage threshold than what you read (by at least a couple of volts).

Our MLP Protectors come in the following thresholds: 14V, 21V, 30V, 56V, 70V, 110V, 123V and 270V.

You'll need one Protector for each pair.

If you're putting this on a line going to another building (OPX), be sure to put them at BOTH ENDS of the cable leaving the buildings!

See our Maximum Lightning Protection Knowledgebase article for more technical details.

Photo Gallery

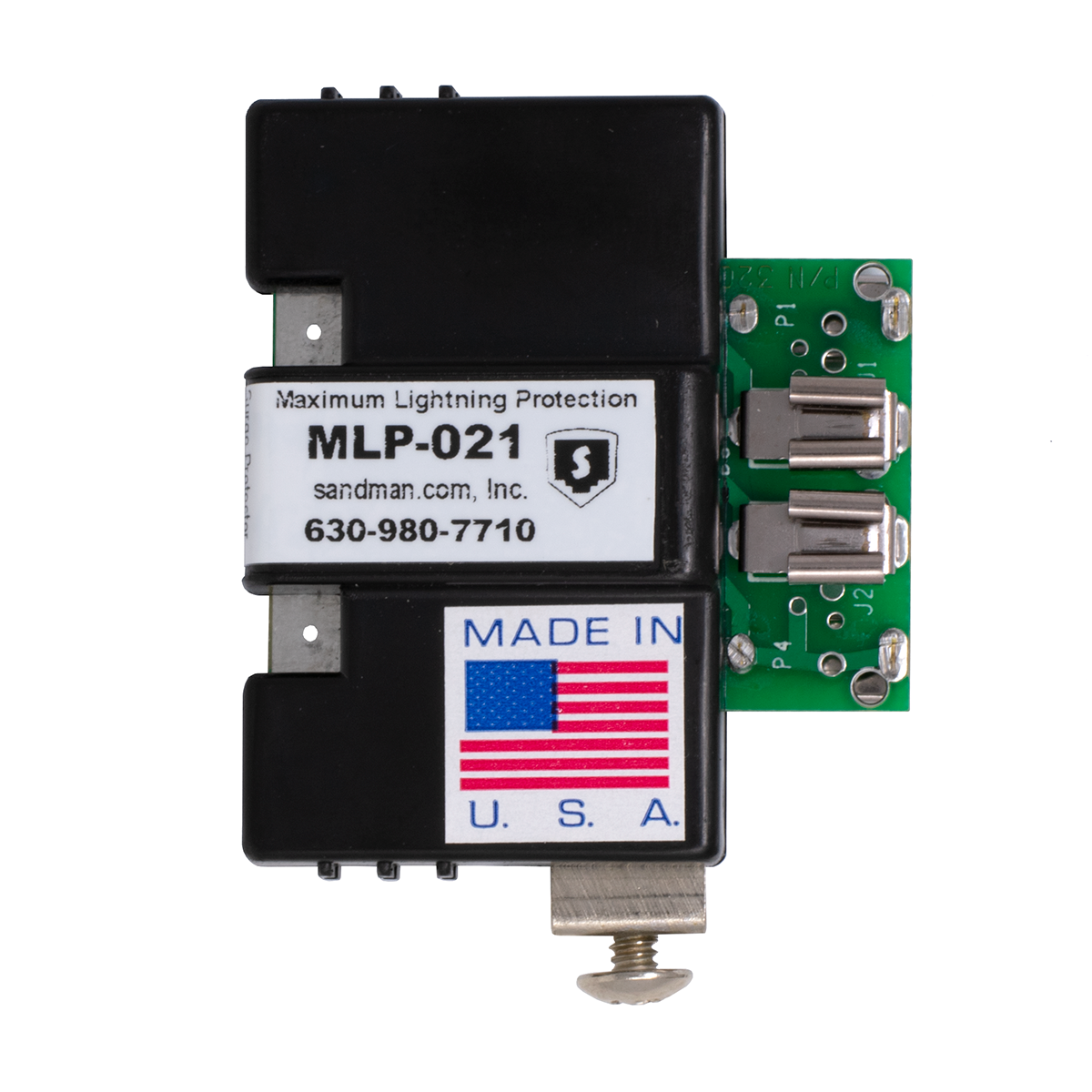

MLP-021 T1/E1 1 Pair Lightning Protector (Top View)
MLP-021 T1/E1 1 Pair Lightning Protector (Top View)

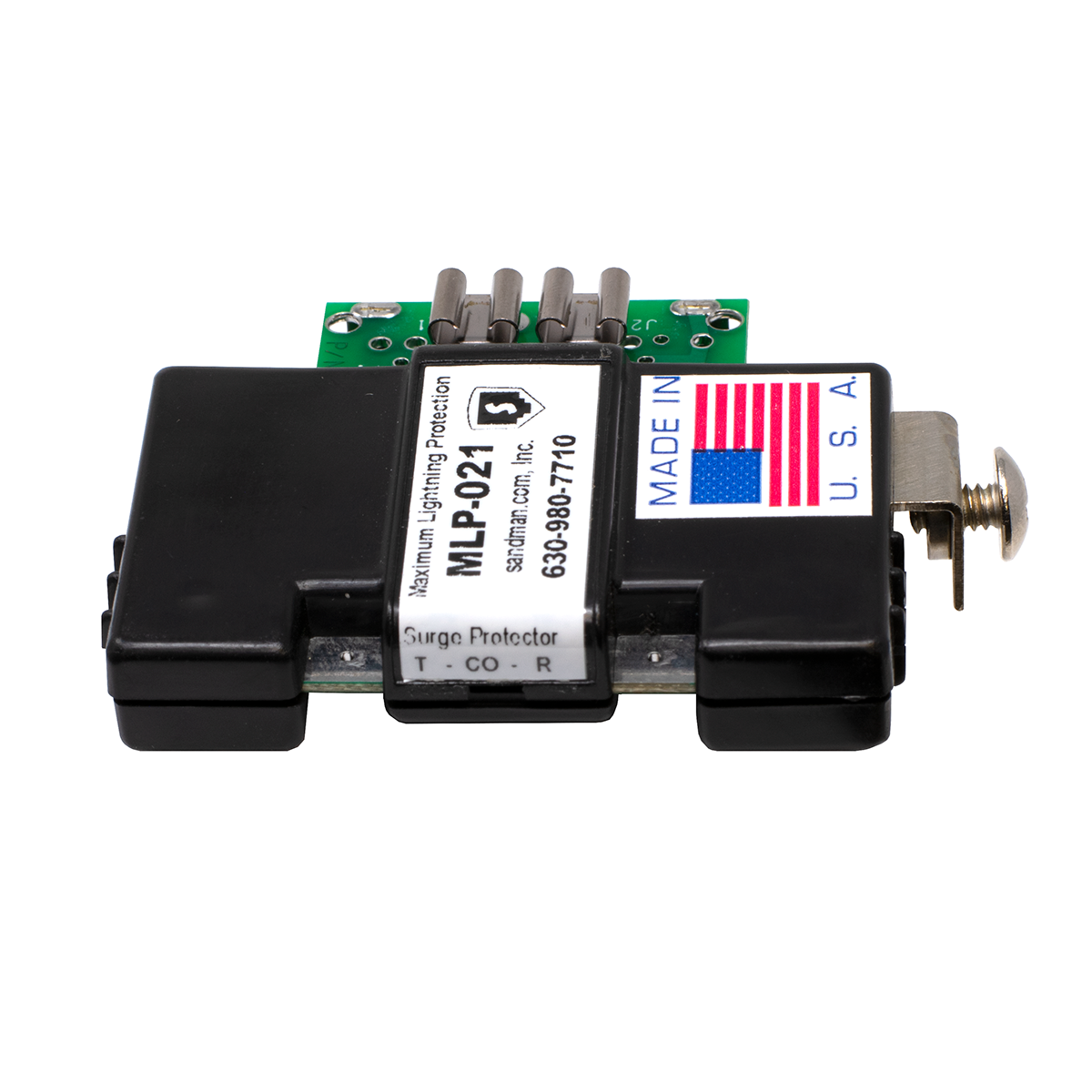

MLP-021 T1/E1 1 Pair Lightning Protector (Front View)
MLP-021 T1/E1 1 Pair Lightning Protector (Front View)

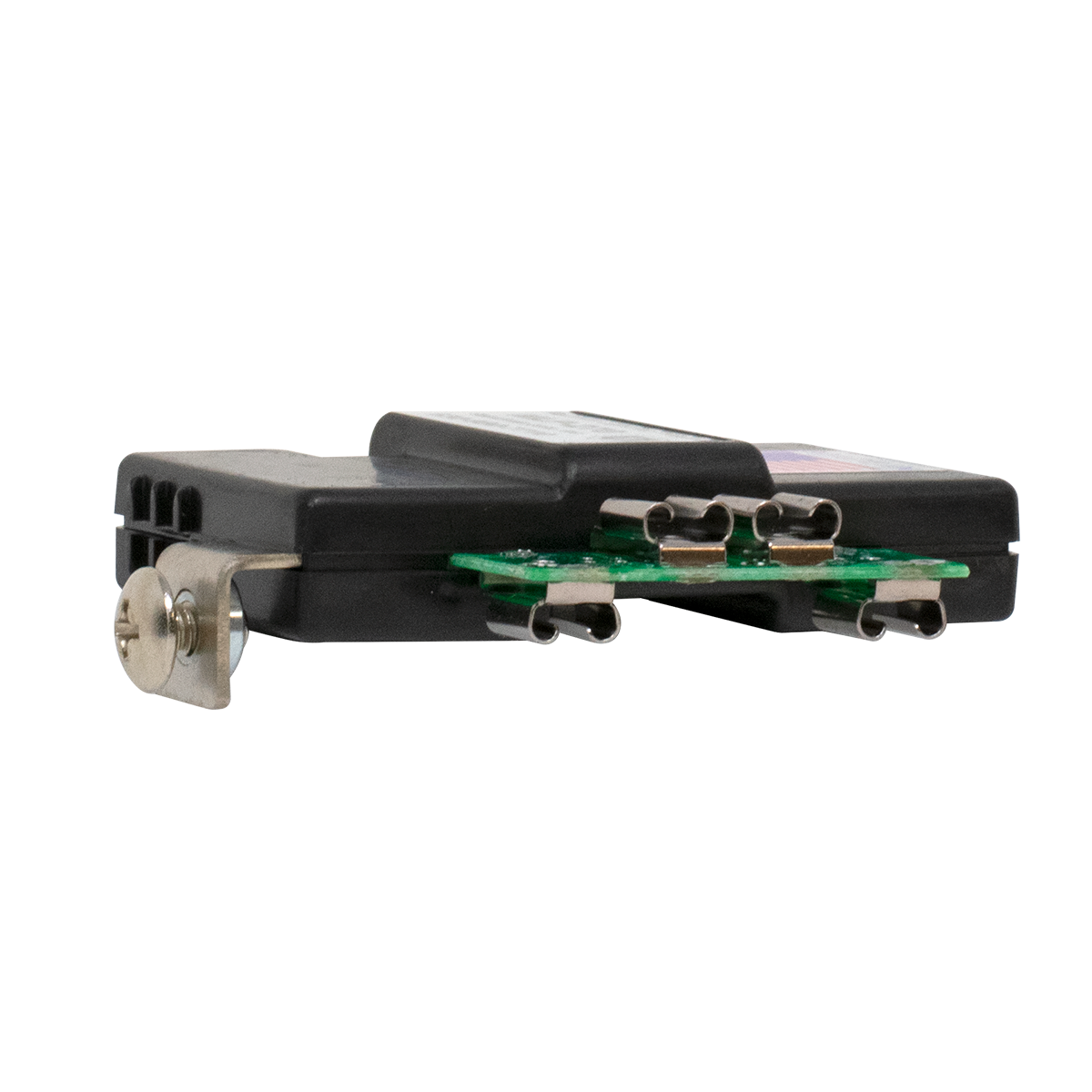

MLP-021 T1/E1 1 PR PROTECTOR
MLP-021 T1/E1 1 PR PROTECTOR
