#CID9H - 8dB 66 Block Attenuator

SKU: #CID9H
Price: $22.95

In Stock

Add to Cart

Product Highlights

• Adds 8 dB loss to telephone line
• For Split 66M Blocks
• Reduce Line Volume / Echo

Warranty & Terms

• 1 Year Warranty
• 30-Day Money Back Guarantee
• See Full Warranty / Ordering Terms

Product Details

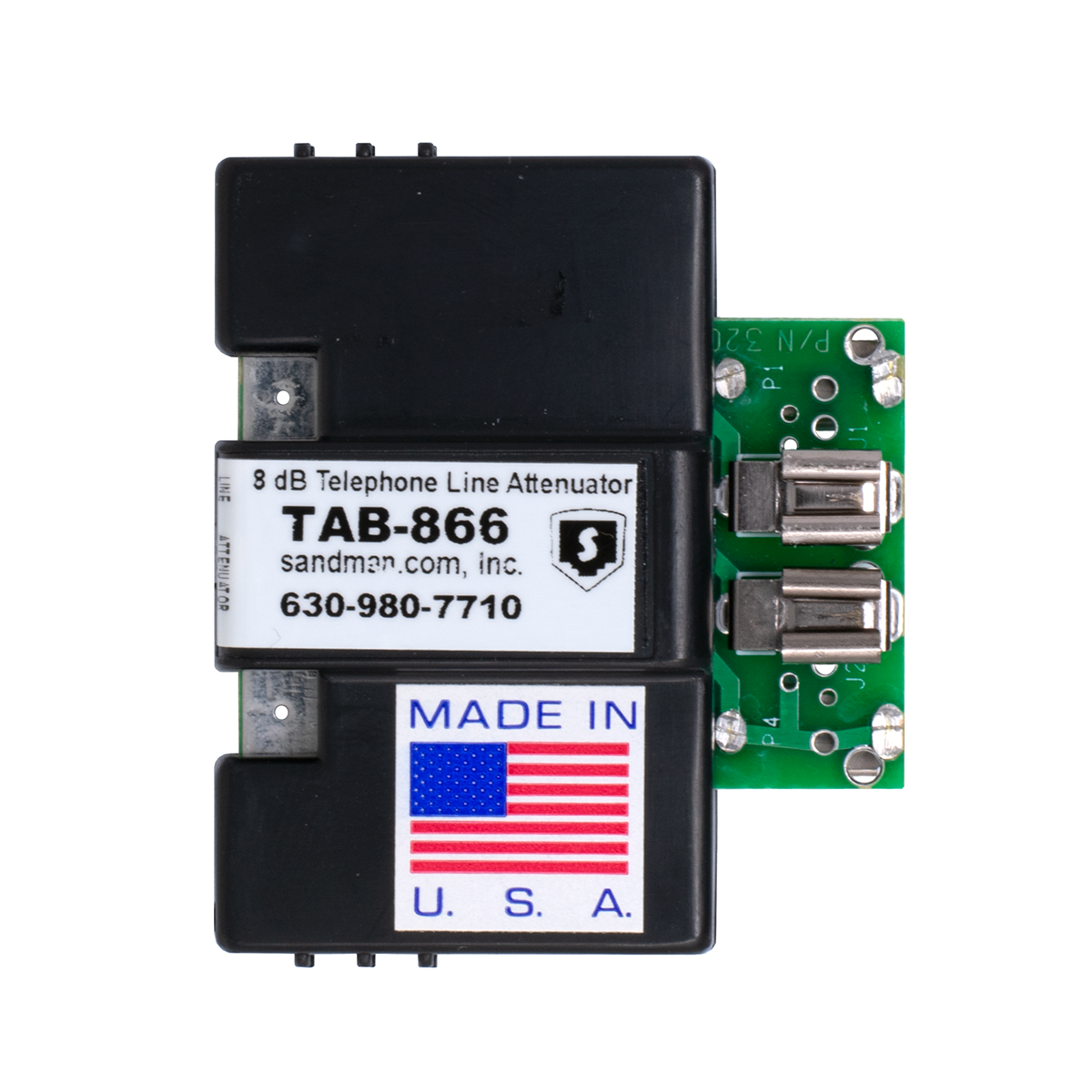

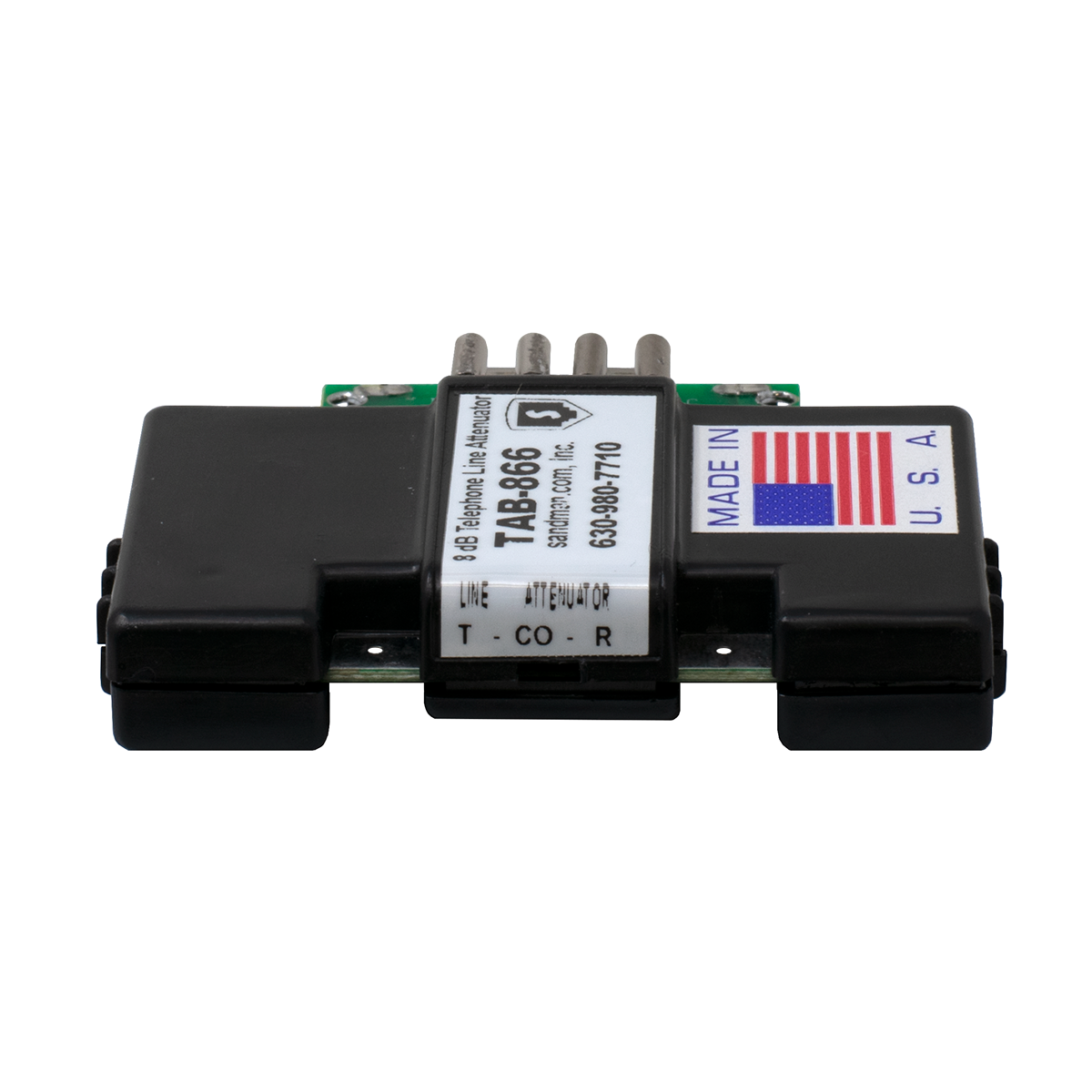

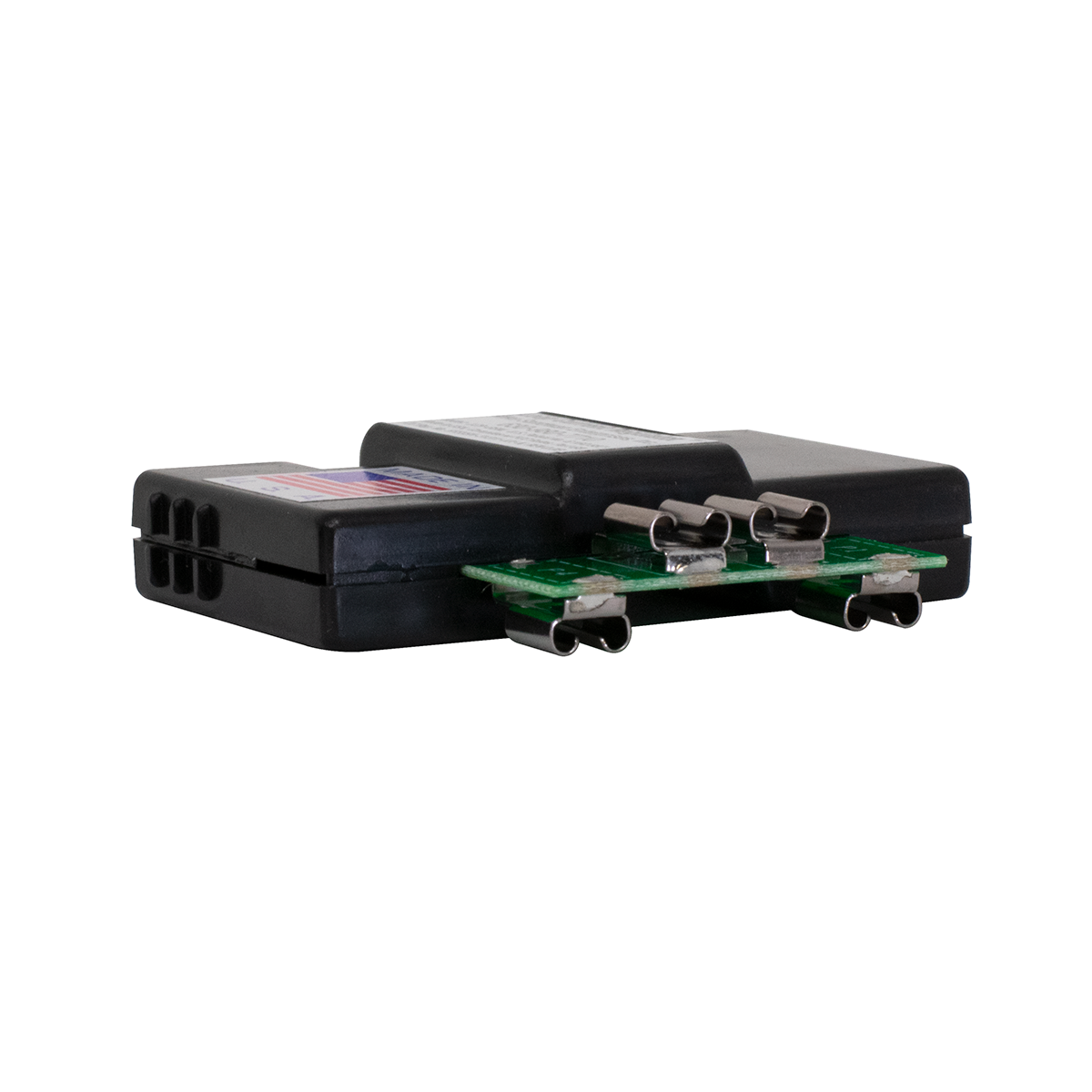

8 dB 66 Block Telephone Line Attenuator

There are times when you have to reduce the audio level of a telephone line.

High audio levels can lead to Touch Tone (DTMF) recognition problems, echo, and distorted sound.

Our 66 Block Fixed Value Attenuators come in 1, 2, 3, 4, 6 and 8 dB values. They are very useful for reducing echo on a phone line or station port.

They're made to be used on a split 66M block (66M1-50). They won't fit on a 66B block.

Connects in-series between the telephone line or analog station port on the left side of the 66 Block, and the telephone equipment on the right side of the 66 Block.

There are two components to a telephone line. The DC talk battery, and the AC audio. Other devices like our Loop Current Regulator and Loop Current Attenuator only affect the DC voltage and loop current of the phone line. They're specifically made to NOT lower the AC audio on the line, since that would cause "Can't Hear" problems as you lower the loop current.

If you insert too much loss, and bring the loop current below 23ma, you'll create other problems on the line like cut-offs, answering and dialing problems. You should be watching the loop current on your meter or Loop Current Tester as you attenuate the line, to make sure you don't go below 23ma. The loop current will drop by about 1ma for every 1db of attenuation you add to the line.

NOTE: Don't put in more than 1 or 2db of loss in-front of a VoIP system. Putting too much loss in the line can make an impedance mismatch worse, creating echo (rather than fixing it). It will only take a minute or two to see if a little attenuation will help echo problems on a VoIP phone system or line.

We have both Modular and 66 Block versions of our Fixed Attenuators!
