LOW VOLTAGE FLUSH MOUNTING PLATES, LEVEL / TEMPLATES,
CABLE INSTALLATION TOOLS and HARDWARE
Cable Installation Supplies are just below, and Cable Installation Tools are towards the bottom of the page.
Click HERE to go right to Installation Tools towards the bottom of the page
SINGLE GANG LOW VOLTAGE PLASTIC FLUSH MOUNT DEVICE (LV1)
Single Gang Plastic Flush Mount Device
Our Plastic Low Voltage Flush Mount has all its parts already assembled!
All YOU have to do is turn the screwdriver!
The arms automatically turn into position to hold the mount to the wall. Keep turning the screwdriver until the screws are tight. That's All!
It's NOT GOING TO MOVE after you tighten the screws!
Works in 1/4 inch to 1 inch Drywall or Panelling.
NON-CONDUCTIVE PVC
FREE Level / Template with every 100 Low Voltage Mounting Plates...
Or... Get 100 Single Gang Low Voltage Mounting Plates for
$1.02 each without the free Level / Template!
This is the Part Number and Price for the Single Gang Low Voltage Mounting Plate - not the Template and Level:
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CHM3KDOUBLE GANG LOW VOLTAGE PLASTIC FLUSH MOUNT DEVICE (LV2)
Double Gang Low Voltage Plastic Flush Mount Device
Works great for Alarm Keypads!
Our Plastic Low Voltage Flush Mount has all its parts already assembled! Just tighten the screws!
NON-CONDUCTIVE PVC
Our Level / Template works great for Single or Double Gang Mounting Plates
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CHM3JSCREW-IN Metal SINGLE GANG LOW VOLTAGE FLUSH MOUNT DEVICE
Screw-In Single Gang Metal Flush Mount Device
For the Old-Timers who like putting screws through their fingers.
For old work.
CONDUCTIVE METAL
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CHM1SNew Construction
SCREW-IN Plastic SINGLE GANG LOW VOLTAGE FLUSH MOUNT DEVICE
Screw-In Single Gang Plastic Flush Mount Device
for New Construction
Screws Included.
NON-CONDUCTIVE PLASTIC
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CHM3MNew Construction
NAIL-IN Plastic SINGLE GANG LOW VOLTAGE FLUSH MOUNT DEVICE
Nail-In Single Gang Metal Flush Mount Device
for New Construction
Nails not included.
NON-CONDUCTIVE PLASTIC
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CHM3P
BOX EXTENDER - SINGLE GANG
Adds 5/8" Depth
Paintable Plastic for High or Low Voltage Work
(Double and Triple Gang Below)
Works great for Dimmers!
Keep some of these around for those outside walls with 1" Furring Strips, with drywall mounted to them!
Plenty of room for a 6 Port Faceplate with Keystone Jacks
Comes with Extra Long Screws for the Faceplate
NON-CONDUCTIVE PLASTIC
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # PAP4D
BOX EXTENDER - DOUBLE GANG
Expandable!
Adds 5/8" Depth
Paintable Plastic for High or Low Voltage Work
(Expandable to 3, 4 or More Gang - See Below)
Keep some of these around for those outside walls with 1" Furring Strips, with drywall mounted to them!
Two pieces simply snap together, or can be expanded with a Coupler Set (below). Comes with Extra Long Screws for the Faceplate
NON-CONDUCTIVE PLASTIC
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # PAP4E
BOX EXTENDER - GANG COUPLER (Expander) SET
Each Set Extends the Double Gang Box Extender by 1 Gang
Paintable Plastic for High or Low Voltage Work
Each Set (2 Pieces) Extends a Double Gang Box Extender by 1 Gang. Pieces simply snap together.
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # PAP4F2 GANG BOX EXT COUPLER SET
$1.99
TILT BRACKET FOR WALL JACK
Tilt Bracket for Wall Phone Jacks
If the display on the wall phone you're installing is hard to read,
or it's just hard to use or dial when the phone is straight up and
down, this Tilt Bracket will give you a finished installation.
The Wall Jack is not included, but we sell regular
Wall Jacks and Keystone Wall Jacks (as pictured)
Mount the Tilt Bracket to the wall, and the Wall Jack to the Tilt Bracket.
It's worked on every wall phone we've tried that uses a regular wall jack, with the two mushrooms for the phone to hang on.
Big phones, small phones, 2554s, they all fit.
This is a very sturdy bracket. We couldn't break it when we tried!
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CHM7ASHORT BODY 8 PIN MODULAR PATCH CORD
Custom Made CAT5e Patch Cord with
Short Body 8 Pin (RJ45) Modular Plug
Made with White CAT5e Stranded Cable
Used for Shoretel Wall Phones
& Other Special Applications
where you need the Short Body RJ-45 Plug
Each End Has 1" of Shrink Tubing
Length Compared to Regular 8 Pin Plug
Specify the length of the White CAT5 Patch Cord (up to 300' or more).
Your cost is for the 1 Foot Patch Cord (CAP3S) and any additonal feet you need (CAP3T) per foot (see below).
We can normally make them the same or next day in the length you need.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CAP3S
ADDITIONAL 1 FOOT OF CAT5e WHITE CABLE for SHORT BODY 8 PIN PATCH CORD
Add as many feet as you need to the 1 Foot Patch Cord..
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CAP3TADDL 1' WHITE SHORT PLUG CORD
$0.30
6 INCH CAT5e SHORT BODY 8 PIN PATCH CORD - WHITE
Great Size for VoIP Wall Phones!
Phone Orders at 630-980-7710, or order the 6" Short Body Plug Patch Cord Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CAP3RPLASTIC DRYWALL BUSHING - 1 INCH I.D. - Bag of 5
Plastic Drywall Bushing - 1 Inch I.D.
A raw hole in drywall doesn't look so hot...
It's cheap and easy to look like a Pro!
Just drill a hole with a Paddle Bit or Hole Saw, thread the Drywall Bushing into the hole with your fingers,
and tighten the Drywall Bushing with a Channel Locks or wrench:
Bag of 5
NON-CONDUCTIVE PLASTIC
Comes with sandman.com 30-Day Moneyback Guarantee
Part # PAP2NPLASTIC DRYWALL BUSHING - 2 INCH I.D. - Bag of 5
Plastic Drywall Bushing - 2 Inch I.D.
Same as above with 2 Inch ID
Bag of 5
NON-CONDUCTIVE PLASTIC
Comes with sandman.com 30-Day Moneyback Guarantee
Part # PAP2M1/2 Inch THINWALL CONDUIT BUSHING
1/2 Inch Thinwall Conduit Bushing
Keeps cable jacket from getting ripped on stubbed pipes.
Now required by some electrical inspectors.
Bag of 100
NON-CONDUCTIVE PLASTIC
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT1B3/4 Inch THINWALL CONDUIT BUSHING
3/4 Inch Thinwall Conduit Bushing
Keeps cable jacket from getting ripped on stubbed pipes.
Now required by some electrical inspectors.
Bag of 100
NON-CONDUCTIVE PLASTIC
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT1C7/8 Inch SNAP-IN PLASTIC BUSHING
7/8 Inch Plastic Bushing
Keeps the cable jacket from getting ripped on holes you drill in headers and studs.
Bag of 100
NON-CONDUCTIVE PLASTIC
See our 7/8 Inch Stepped Bit, below...
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT1G7/8" STEPPED BIT
7/8 Inch Stepped Bit
The Fastest and Easiest way to drill holes for cable in studs and headers.
Comes with sandman.com 30-Day Moneyback Guarantee

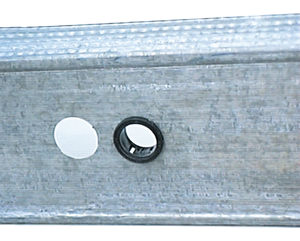

Part # HND1TPLASTIC BUSHING FOR METAL STUDS
Plastic Bushing for Metal Studs
Plastic Bushing to prevent the holes in metal studs
from cutting the cable jacket running through them.
Bag of 25
NON-CONDUCTIVE PLASTIC
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT4LUNIVERSAL GROUND BUS with COVER
Inter-system Bonding & Grounding
Takes #2 to #6 Main Ground Wire
(Solid or Stranded)
Takes Four
#4 to #16 System Ground Wires
(Solid or Stranded)
Zinc Plated. Two Lugs for Mounting to a Wall or Backboard.
Paintable Plastic Cover. Use the Cover, or put it on the Backboard without the Cover.
Cold Water Pipes are no longer safe to use for a ground since there's likely to be PVC pipe somewhere. The electrical panel should be grounded to a ground rod outside. Check to make sure there's a wire from the ground rod to the panel and that it's all connected.
Use a ground from the electrical panel to this Ground Bus, and connect your systems and lightning protection to the common ground through this Ground Bus.
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # PAP4G12 x 12 x 4 DEEP HINGED PLASTIC BOX
12" x 12" x 4" Deep Plastic Utility Box
Hinged cover can be removed with two screws
Cover can just be closed (by friction), use two
screws
to close it shut, Locked with a Small
Padlock (not included),
or you can install
an Optional Cam Lock with 2 Keys
Great Utility Box for Anything, or it will hold 1, 2 or 3 66M Blocks and Mushrooms. 3 Blocks is pretty tight!
1/2" and 3/4" knockouts on the top and bottom.
Routing 25 Pair Cables into the box will require planning of which knockouts to use, or where to drill holes, depending on how many 66 Blocks and 25 Pair Cables you are using.Blocks and mushrooms are not included, but we sell them.
Mount the box on the wall, then mount the blocks and mushrooms. The screws for the blocks and mushrooms will pass through the plastic box into the wall or plywood behind it.
NON-CONDUCTIVE PLASTIC
Comes with sandman.com 30-Day Moneyback Guarantee
Part # PAP2P
CAM LOCK for HINGED PLASTIC BOX
Remove the knockout on the door of the box and install the cam lock with two keys.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # PAP2OCAM LOCK FOR HINGED PLAST BOX
$5.95

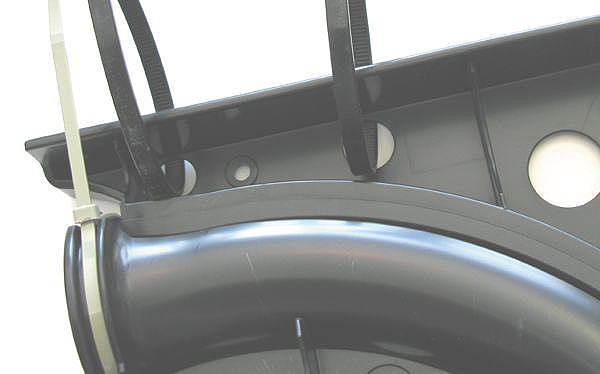

Tie Wraps
and Tie Wrap Mounts
I personally only use
Telephone Gray Tie Wraps
when building a frame (to match
the wire color), but we also have
Black and Natural Tie Wraps
All of our Tie Wraps and
Mounts
are made right here in the Chicago area!
Some Tie Wrap Facts:
Tie Wraps
shouldn't be left in the sun (like on a dashboard or seat). The
nylon material will dry out, making the Tie Wrap brittle and
break when it's tightened. You can fix dried out Tie Wraps by
putting a few drops of water in the bag and sealing it. They nylon will
absorb the moisture, and the Tie Wrap will be good as new.
Tie Wraps will
dry out if left in an opened bag.
Use them up, or put a couple of drops of water in the bag and reseal it.
Clear packing tape works OK. Seal it well so it's air tight.
Tie Wraps shouldn't
be left in freezing weather. The moisture in the nylon will create
microscopic cracks that will permanently damage the Tie Wrap.
They'll be more likely to break when tightened.
All of our Tie Wraps
are packed in bags of 100 even if we sell them in 500
quantity, since you don't want to open a bag and have it laying around,
drying out. Work out of one bag as much as possible!
It's best to use
Telephone Gray or Black Tie Wraps outside. They are UV
resistant, and are better than Natural outside.
Once a Tie Wrap is
tightened on cable (indoors, that doesn't move), the Tie Wrap
will dry out but hold the cable just fine since there's no motion. Don't
over tighten the Tie Wrap, which will deform the cable.
Use our Velcro Tie Wraps on CAT5 or CAT6 cable, since deforming data cable can effect Ethernet speeds (voice usually doesn't care unless you get crazy tightening the Tie Wrap).
5" Natural Tie Wrap - SmallBag of 100 - 1/8" Wide Natural
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SER4K5" WHITE 1/8" TIE WRAP-BAG/100
$3.19
5" Black Tie Wrap - Small
Bag of 100 - 1/8" Wide Black
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SER4J5" BLACK 1/8" TIE WRAP-BAG/100
$3.19
8" Standard Size Tie Wraps... Telephone Gray, Black & Natural
8" Telephone Gray
Tie WrapStandard Size Tie Wrap
8" Telephone Gray Tie Wrap
500 Quantity Minimum - Sold and Packaged in Bags of 100 Tie Wraps
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SWI4P8" TEL GRAY TIE WRAPS <100>
$3.60
8" Black Tie Wrap
500 Quantity Minimum - Sold and Packaged in Bags of 100 Tie Wraps
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SWI4H8" BLACK TIE WRAPS <100>
$3.60
8" Natural Tie Wrap
500 Quantity Minimum - Sold and Packaged in Bags of 100 Tie Wraps
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SWI4DNATURAL 8" TIE WRAPS <100>
$3.60
14" Natural Color Tie Wraps
Same as our 8" Tie Wrap, but 14" in Length
Sold in Bags of 100 Tie Wraps - 14" Only Available in Natural Color
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SWI4R11" Telephone Gray Tie Wrap
Thin
11" Telephone Gray
Tie Wrap
Just like the
Phone Company uses
This is the handiest
Tie Wrap to carry! It's longer than a regular 8"
Tie Wrap so you won't have to put two together for bigger bundles,
and thinner (about half the width of the 8" Tie Wrap...see the picture of
both sizes of Telephone Gray Tie Wraps above) since we don't need
lots of strength to hold bundles of telephone wire.
Sold in Bags of 100 Tie Wraps - 11" Only Available in Telephone Gray Color
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SWI2DEXTRA HEAVY DUTY BLACK 18" TIE WRAPS
This is one heck of a Tie Wrap!
Extra Heavy Duty 18" Tie Wrap compared to Standard
8" Tie Wrap
Sold in a Bag of 100
Comes with sandman.com 30-Day Moneyback Guarantee
Part # MSC3JTIE WRAP MOUNT - Natural Color
Tunnel Type Tie Wrap Mount... The Fastest and Easiest to Use!
Sold in Bags of 100 Natural Color Mounts
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SWI4Q
Tie Wrap Mount - Black Color
Black Tunnel Type Tie Wrap Mount
Sold in Bags of 100 Black Color Mounts - Same as Natural Color Mount (Above)
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SER8NBLACK SCREW MOUNT-TIE WRAP<100
$9.95
8" Natural Color Tie Wrap with Mounting Hole
8" with Mounting Hole
Only Available in Natural Color
Sold in Bags of 100 Tie Wraps with Mounting Hole
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SWI4FTEFLON TIE WRAPS
Teflon Tie Wraps are Required in Air Plenum Return Ceilings
When standard Tie Wraps burn, they lot off toxic gas. If they're in a ceiling that's used for the air return on the HVAC system (where the returns aren't ducted), they will distribute the toxic gas to other spaces that aren't on fire, where the people will die (even though there's no fire). You would use Teflon cable in air plenum return ceilings, for the same reason.
Teflon doesn't let off toxic gas when it's burned, so it's safe to use in the plenum return to bundle cables. You don't want to use these in premises with a ducted return (no air plenum return ceiling) since these are incredibly expensive!
8" Teflon Tie Wraps
Standard size Tie Wrap
with a special
Turquoise Color indicating they're for
Plenum use.
8" Teflon Tie Wrap
100 Quantity
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SWI4E
11" Teflon Tie Wrap
100 Quantity
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SWI2T11" TEFLON TIE WRAPS <BAG/100>
$76.95
TIE WRAP POUCH
With Police Style Metal Belt Clip
Holds 8" or 11" Tie Wraps
Velcro Flap
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND1SVelcro Tie Wraps
Black, Red, Orange,
Yellow, Blue, Violet,
Gray, White
Can be screwed to a wall, backboard,
or rack uprights
All sizes are sold in Rolls of 10
12" Velcro Tie Wraps
Black Only... for Bigger Bundles
Sold in Rolls of 10
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SER8P10 12"VELCRO TIE-BL
$9.50 Quantity Pricing Available
8" Velcro Tie Wraps
Black
Sold in Rolls of 10
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SER8E10 8" VELCRO TIE-BLAC
$6.79 Quantity Pricing Available
8" Velcro Tie Wraps
Red
Sold in Rolls of 10
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SER8F10 8" VELCRO TIE-RED
$6.79 Quantity Pricing Available
8" Velcro Tie Wraps
Orange
Sold in Rolls of 10
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SER8G10 8" VELCRO TIE-ORAN
$6.79 Quantity Pricing Available
8" Velcro Tie Wraps
Yellow
Sold in Rolls of 10
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SER8H10 8" VELCRO TIE-YELL
$6.79 Quantity Pricing Available
8" Velcro Tie Wraps
Blue
Sold in Rolls of 10
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SER8I10 8" VELCRO TIE-BLUE
$6.79 Quantity Pricing Available
8" Velcro Tie Wraps
Violet
Sold in Rolls of 10
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SER8J10 8"VELCRO TIE-VIOLE
$6.79 Quantity Pricing Available
8" Velcro Tie Wraps
Gray
Sold in Rolls of 10
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SER8K10 8"VELCRO TIE-GRA
$6.79 Quantity Pricing Available
8" Velcro Tie Wraps
White
Sold in Rolls of 10
Comes with sandman.com 30-Day Moneyback Guarantee
Part # SER8L10 8"VELCRO TIE-WHIT
$6.79 Quantity Pricing Available
CROSS CONNECT WIRE HOLDER
Holds 1, 2 or 3 Pair Cross Connect Wire
One or more of these will really speed up making a frame!
Unscrew it when you're done and take it with you!
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND3SMUSHROOM SPOOL with WOOD SCREW
For Dressing Cross Connect Wires
on Frames
Wood Screw Molded Into Mushroom
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CLN7IMUSHROOM SPOOL with NO SCREW
For Dressing Cross Connect Wires
on Frames
Use your own screw
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CLN7H1/2 4 INCH METAL D-RING
Don't use Plastic - They Break!
1/2 Open 4" Distribution Ring
For Dressing Cross Connect Wires
on Frames
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9T1/2 4 INCH METAL D-RING
3/4 Open 4" Distribution Ring
For Dressing Cross Connect Wires
on Frames
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9R3 INCH (2 Inch Inside) CLOSED METAL D-RING
Don't use Plastic - They Break!
3" (2" Inside) Metal
Distribution Ring
For Dressing Bundles of Cables
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9P4 INCH (3 Inch Inside) CLOSED METAL D-RING
For Dressing Bundles of Cables
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9S6 INCH (5 Inch Inside) CLOSED METAL D-RING
For Dressing Bundles of Cables
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9QBBACKBOARD D-RING - 100 PAIR
Hard to Find D-Rings for Routing Cross-Connect Wire and Cable Bundles. Single Screw Mount.
NOTE: May be in Black rather than
Telephone Gray.
100 Pair Backboard D-Ring
Comes with sandman.com 30-Day Moneyback Guarantee
Part # MSC5R
200 Pair Backboard D-Ring
Comes with sandman.com 30-Day Moneyback Guarantee
Part # MSC5SBACKBOARD D-RING-200 PAIR
$2.09
400 Pair Backboard D-Ring
Comes with sandman.com 30-Day Moneyback Guarantee
Part # MSC5TBACKBOARD D-RING-400 PAIR
$2.19
J Cable Support Hook - 1.5 Inch Wide
1.5 Inch J Cable Support Hook
The WIDE J-Hook supports delicate cables like CAT5e
better than a Bridle RIng, which is just a thin rod.
Holds up to 50 4-pair CAT5e or 2-Strand Fiber Optic Cables,
or 32 CAT6 Cables
Has Holes for Tie Wraps
30 pound load rating
Use a screw into wood or metal, or a Beam Clamp with a 1/4-20 bolt.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT4NJ Cable Support Hook - 2 Inch Wide
2 Inch J Cable Support Hook
The WIDE J-Hook supports delicate cables like CAT5e
better than a Bridle RIng, which is just a thin rod.
Holds up to 80 4-pair CAT5e or 2-Strand Fiber Optic Cables,
or 50 CAT6 Cables
Has Holes for Tie Wraps
30 pound load rating
Use a screw into wood or metal, or a Beam Clamp with a 1/4-20 bolt.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT4OJ Cable Support Hook - 4 Inch Wide
4 Inch J Cable Support Hook
This HUGE and WIDE J-Hook supports delicate cables like CAT5e
better than a Bridle RIng, which is just a thin rod.
Holds up to 300 4-pair CAT5e or 2-Strand Fiber Optic Cables,
or 185 CAT6 Cables
Has Holes for Tie Wraps
30 pound load rating
Use a screw into wood or metal, or a Beam Clamp with a 1/4-20 bolt.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT4PPLASTIC CABLE SUPPORT LOOP for 2 INCH BUNDLE - Pack of 25
Plastic Cable Support Loop for 2 Inch Bundle
2 Inch Plastic Loop opens easily without tools to add more cables after it's mounted.
The 2 Inch Support Loop supports delicate cables like CAT5e better than a Bridle RIng,
which is just a thin rod.
Holds a 2 Inch Bundle of up to 60 4-pair CAT5e Cables
Pack of 25
Use a Beam Clamp with a 1/4-20 bolt, or 1/4-20 Threaded Rod with nuts which will let you stack them.
NON-CONDUCTIVE PLASTIC
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT8APLASTIC CABLE SUPPORT LOOP for 5 INCH BUNDLE - Pack of 5
Plastic Cable Support Loop for 5 Inch Bundle
5 Inch Plastic Loop opens easily without tools to add more cables after it's mounted.
The WIDE 5 Inch Support Loop supports delicate cables like CAT5e better than a Bridle RIng,
which is just a thin rod.
Holds a 5 Inch Bundle of up to 300 4-pair CAT5e Cables
Pack of 5
Use a Beam Clamp with a long 1/4-20 bolt, or 1/4-20 Threaded Rod
with nuts which will also let you stack them.
NON-CONDUCTIVE PLASTIC
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT8HPLASTIC CABLE SUPPORT LOOP for 5 INCH BUNDLE - Pack of 25
Plastic Cable Support Loop for 5 Inch Bundle
Same as above but a Pack of 25
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT8GONE HOLE CLAMP
One Hole Clamp
Holds 4 CAT3 or 2 CAT5 Cables.
Bag of 100
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT8PHEADED DRIVE PIN - 3/4 INCH
3/4 Inch Long Headed Drive Pin
Hammer it in. Built-in Washer
Works great in masonry. Works great with the One Hole Clamp.
Box of 100
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT8O1/2 Inch DRIVE RING - Bag of 50
1/2 Inch Drive Ring
1/2 Inch Diameter Loop. Hammer it in.
Bag of 50
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT8D5/8 Inch DRIVE RING - Bag of 25
5/8 Inch Drive Ring
5/8 Inch Diameter Loop. Hammer it in.
Bag of 25
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT8E1 1/4 Inch DRIVE RING - Bag of 25
1 1/4 Inch Drive Ring
1 1/4 Inch Diameter Loop. Hammer it in.
Bag of 25
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT8F1 INCH WOOD BRIDLE RING
1 Inch Wood Bridle Ring
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9H1 1/2 INCH WOOD BRIDLE RING
1 1/2 Inch Wood Bridle Ring
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9I2 INCH WOOD BRIDLE RING
2 Inch Wood Bridle Ring
Order a PAP2L to turn a regular 2 Inch Bridle Ring
into a Cable Loop with our 2 Inch Bridle Ring Saddle
Comes with sandman.com 30-Day Moneyback Guarantee
Part # PAP2K2 INCH PLASTIC BRIDLE RING SADDLE for DATA CABLES
2 Inch Plastic Bridle Ring Saddle for Data Cables
Prevents the thin rod of a regular 2 Inch Bridle Ring from damaging the bundle of wires running through it.
Snaps into a 2 Inch Bridle Ring (Wood or 1/4-20 Threaded).
Comes with sandman.com 30-Day Moneyback Guarantee
Part # PAP2L2 INCH 1/4-20 THREADED BRIDLE RING
2 Inch Diameter 1/4-20 Threaded Bridle Ring
Order a PAP2L to turn a regular 2 Inch Bridle Ring
into a Cable Loop with our 2 Inch Bridle Ring Saddle
Use with a Beam Clamp.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9J4 INCH 1/4-20 THREADED BRIDLE RING
4 Inch Diameter 1/4-20 Threaded Bridle Ring
Use with a Beam Clamp.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9K4 INCH 1/4-20 THREADED BRIDLE RING with PLASTIC SADDLE
4 Inch Diameter 1/4-20 Threaded Bridle Ring with
Plastic Saddle to Protect Bundle
Use with a Beam Clamp.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # PAP2JBEAM CLAMP - STAMPED - Bag of 10
Beam Clamp - Stamped Metal
Has 1/4-20 Threaded Holes.
Bag of 10
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9LBEAM CLAMP - CAST - Bag of 10
Beam Clamp - Cast Iron
Has 1/4-20 Threaded Holes.
Bag of 10
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9M1/2 INCH HEX HEAD BOLT - 1/4-20 - Box of 100
1/2 Inch Hex Head Bolt
Has 1/4-20 Threads.
Box of 100
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT8S3/4 INCH HEX HEAD BOLT - 1/4-20 - Box of 100
3/4 Inch Hex Head Bolt
Has 1/4-20 Threads.
Box of 100
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9GBLACK ELECTRICAL TAPE - 3/4 Inch x 60 feet
Black Economy Electrical Tape - 3/4 Inch by 60 Feet
Has good adhesive. Not as good as 3M, but better than most economy tapes.
Great for taping cables to the fish!
Super Sale - Limited Quantity
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND2F3M 1700 BLACK ELECTRICAL TAPE - 3/4 Inch x 66 feet - Sleeve of 10 Rolls
3M 1700 Temflex Black Electrical Tape - 3/4 Inch by 66 Feet
Has very good adhesive.
Not as good as 3M 33+, but good enough for anything you need Electrical Tape for
inside a building (and outside too!)... AND it's A LOT cheaper than 33+!
Sleeve of 10 rolls
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND2Q3M 35 GRAY ELECTRICAL TAPE - 3/4 Inch x 66 feet
3M 35 Gray Professional Grade Electrical Tape - 3/4 Inch by 66 Feet
Has very good adhesive!
Write on the Gray Tape with a Sharpie to Leave Notes.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND2SORANGE TAGS WITH STRINGS
Tag a Line,
Tag a Card,
Tag a Phone,
Tag a Swap...
Just Tag It!
3 1/4" by 1 5/8"
Bundle of 50 Orange Tags with String.
Just like the Phone Company Issues!
Tagging your work lets the next repairman know what the previous guy did.
50 Orange Tags with String
Comes with sandman.com 30-Day Moneyback Guarantee
Part # MIS1QORANGE TAG/STRING-50
$6.99 Quantity Pricing Available
TWIN TIP SHARPIE - FINE and EXTRA FINE
Twin Tip Sharpie - Black
Fine and Extra Fine
The Fine Tip is for marking cables and the Extra Fine Tip is for
marking blocks, and writing on Gray Tape and Tags to leave notes.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND7BEZ ANCOR ZINC - BOX of 100
Takes #8 Screws
The BEST Drywall Anchor You Can Get!
Simply screw it into the wall with your Phillips Driver
Supposedly the Zinc version will unscrew out of the wall cleaner when you have to do that (compared ot the Plastic version).
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND3AEZ ANCOR PLASTIC - BOX of 100
Takes #8 Screws
The BEST Drywall Anchor You Can Get!
Simply screw it into the wall with your Phillips Driver
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND3B#8 x 1 INCH SHEET METAL SCREW - BOX of 100
Use this screw for the EZ Ancor.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND3J#8 x 1.5 INCH SHEET METAL SCREW - BOX of 100
Use this when you need a longer screw (like for a sheet of plywood) for the EZ Ancor.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND3Q6 POCKET CANVAS PARACHUTE SCREW BAG
We finally found a Screw Bag that meets our quality standards...
![]() |
![]() |
![]() |
10" Diameter with 7" Deep Pockets
Has Carrying Handle and Cord Keeper to Keep the Screw Bag Closed
We've been out of stock on these for years. The ones we've found until now were really junk.
This is a great Screw Bag at a great price!
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND8ALEVEL / TEMPLATE for LOW VOLTAGE FLUSH MOUNT DEVICE
Template / Level for Low Voltage
Plastic Flush Mount Device
Works on SINGLE and DOUBLE
Gang Flush Mounts!
The FASTEST and EASIEST way
to make your installation
Look Professional!
Get one FREE Level / Template with every 100 Single Gang Plastic Flush Mounts at $1.08 each!
Check out our video below to see our Low Voltage Mounting Bracket Template in action!
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CHM3OLEVEL / TEMPLATE with TAPE MEASURE for LOW VOLTAGE FLUSH MOUNT DEVICE
Template / Level with Tape Measure
for Low Voltage Plastic Flush Mount Device
Works on SINGLE and DOUBLE Gang Flush Mounts!
Swiveling Tape Measure lets you put the Low Voltage Flush Mount Device exactly 12” from the floor, at outlet level.
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CHM3ITOP-SLIDE SUSPENDED CEILING CABLE GUIDE - 2 PACK
TOP-SLIDE
Suspended Ceiling
Cable Guide
2 Pack
Prevents cable from snagging on the corners of the grid, and makes pulling a tangle-free easy one-man job.
Snaps right over the ceiling grid, and pops right off when you're done. Put one at each end of the pull (sold as a 2-Pack).
Raised ends keeps the cable on the Top-Slide to prevent snags and tangles.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND4B
The Pulling Elbow™
|
The Pulling Elbow™ allows you to pull cable safely around corners. 6" Radius allows one man to pull cables around a corner, while protecting CAT5 and CAT6 cables from being bent to the point that they won't run at full speed. • 2" Smooth Pulling Tunnel for running cables has a slot so the cables can be removed after you go around the corner. • 11.5" by 11.5"
"L" Shaped • Pulling Tunnel holds up to 25, CAT5 / CAT6 or up to 5, 25 Pair Cables. • Lots of Holes for Easy Mounting with Tie Wraps, Scrap Wire, Beam Clamps or Screws. |
||
![]() |
![]() |
|
|
Lots of Holes For Mounting |
Use Beam Clamps to Mount It |
Use Tie Wraps to Mount It |
|
![]() |
![]() |
|
|
Wood Screw Mounting |
Tie Wrap Mounting |
Use Vise Grips for Mounting |
|
![]() |
If there's no easy way to run the cable in the direction you want... Make it easy on yourself by using The Pulling Elbow™ |
![]() |
|
There are some jobs where leaving it in the ceiling is the cheapest way to go! | |||
![]() |
|||
![]() |
NOTE: Use a single 14" Tie Wrap, or put two 8" Tie Wraps together to close the ends of the Tunnel. Each end of the Tunnel has a convenient slot to hold a standard width Tie Wrap. Just snip the Tie Wraps at the two ends of the Tunnel to remove the cables, or leave The Pulling Elbow™ in the ceiling. If you're using more than one Pulling Elbow™ to go around two or more corners (at once), you'll probably need someone paying out the cable from the boxes to help you. |
Click HERE to see our Extra Heavy Duty Black 18" Tie Wraps for easy mounting!
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOH4OCABLE GUIDE - SUPER HEAVY DUTY
Heavy Duty Ceiling Cable Guide
Chains With Snap Clips Attach to Truss
Run LOTS of cables at one time! The Cable Guide makes pulling cables a tangle-free easy one-man job.
Once side of the Roller mount flips up for easy loading of the cables (you don't have to thread them through the roller).
All steel construction with heavy duty chains and snap clips. Two Rubber Rollers to guide the cable.
Includes Vinyl Drawstring Bag to carry the Cable Guide and chains.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOH4G15' FIBERGLASS 1/4" FISH TAPE
Super Light 15 Foot Fiberglass Fish Tape
Goes STRAIGHT up or Down a
Wall!
12" diameter PVC case is both light and
easy to carry
Small enough to carry in your luggage for
out-of town jobs!
The SECRET is that it's made exactly like a 1/4" Steel Fish Tape...
1/4" Wide and 1/8" Thick!
![]() |
![]() |
1/4" Wide |
1/8" Thick |
Feed the flat 1/4" section up or down the wall (facing
you) until
you hit the header or floor, then fish the included 8" chain
(with a
ring to tie the cable onto) out of the hole.
The 1/4" Fiberglass Fish goes straight
up or down - it doesn't go
off to the side and get lost in the wall!
Makes fishing walls a quick and easy one-man job.
8" Ball Chain with a Cable Ring on one end, and a Bullet Nose with a Hole on the other end.
It's definitely the fastest and easiest way to fish an insulated wall, or fish a stubbed pipe!
A little history:
Although phone men have been trying to fish both insulated and un-insulated walls with 1/8" fish tapes for years, they quickly found that the fish would simply coil up inside the wall, and pretty much never come out. That's because the 1/8" fish retains it's coiled memory, so it coils up inside the wall just like it did when it was stored.
In the early 1980's Harris Seltzer, a phone man I worked with at General Dynamics, showed me the magic of the 1/4" fish. It's twice as wide as the regular 1/8" fish (the 1/8" fish was made for fishing pipes, not fishing walls). The extra width and weight of the 1/4" fish helps it to stay flat after it's uncoiled (unlike the 1/8" fish). The extra width means you can feed the fish out along on a suspended ceiling and it will go straight... and you can fish either up or down a wall - and the fish goes straight up or down.
The problem with the 1/4" steel fish was that it was difficult to uncoil and the coil back up, and it's heavy. A new technology has allowed a 1/4" Fiberglass Fish to be made with all of the benefits of a steel fish - and none of the drawbacks!
It's light, easy to carry, easy to coil and uncoil from its PVC case, and there's no oil or rust to come off on your hands.
Try one today! Like all of our products, there's a 30 Day Moneyback Guarantee.
NOTE: The unique 1/4" by 1/8" fiberglass material, which is why this fish goes straight up or down in the wall, is made in Australia. The price of this fish is now quite a bit higher than it was in the past because of the US dollar losing value to the Australian dollar. We have to pay them more US dollars now, in order for them to get the same value in Australian dollars.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CID8D16' TINY EXTENDING FIBERGLASS POLE
It's the
Smallest 16'
Extending Pole
you've ever seen!
Collapses to a little over 2', so it even fits in a Tool Bag!
Only weighs 2 pounds!
Non-conductive fiberglass. Each section locks into place with friction.
Small enough to carry in your luggage for out-of town jobs!
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CID8Q
26' TINY EXTENDING POLE
Collapses to 3'... Only weighs 3.3 pounds!
Non-conductive fiberglass. Each section locks into place with friction.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CID8P26' TINY EXTENDING POL
$119.95 Quantity Pricing Available
Orange Sticks... PVC Coated Fish Rod Kit
![]() |
Five
6' Sections Special Shoulder on Threaded Ends Prevents the Stud from Breaking... Even if Hand Tightened! |
3/16" Diameter PVC Coated Fiberglass Rods... | the PVC Coating Resists Fiberglass Splintering |
Optional
Eggbeater Head
$12.95 |
![]() |
The
rods go where you want with a flick of your wrist... |
** View Old Style Green Rods in Ceiling **
Open a ceiling tile, then open another one 30 feet away. Feed your Orange Sticks in the direction of the open tile, flicking your wrist if it stops. Watch it come out the open tile a few seconds later. It's that simple!
Now Better Than Ever...
The combination of the Orange PVC Coating over the Fiberglass Rod, and the Shoulder on the Super Strong Male and Female Ends make this new and improved Fish Rod Kit the Best Ever!
Five Orange 3/16" diameter 6' flexible rods screw together for to make a 30 Foot Fish Rod... or put two together to go 60 Feet!
Put 2 sections together to fish up 12' insulated walls!
This tool is a real money maker! Includes carrying case.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CID8A
Eggbeater Head
The Eggbeater Head is now Glow in the Dark plastic, with holes to attach the wire.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CID8KEGGBEATER HEAD FOR ORANGE STIC
$12.95
Orange Stick Accessory Kit:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CID8BORANGE STICK ACCESSORY KIT
$29.95
ALUMINUM PUSH-PULL RODS - SCREW TOGETHER
Each Threaded Rod is made of Aluminum Alloy, 27" long and 3/4"diameter, and weighs only 5 oz.
The end of the first rod of each Kit is bent up a little to go over obstructions, and has a red vinyl coating.A 20 Rod Kit is 45 feet when screwed together. You can screw two kits together to go almost 90 Feet (about as much as you can control in the ceiling).
The benefits of the COATED Aluminum Rods are:
SET OF 10 ALUMINUM PUSH / PULL RODS - PLAIN - 22.5 Feet
Set of 10 PLAIN Push-Pull Rods in CaseIncludes Vinyl Drawstring Carry Bag
22.5 Feet when all rods are screwed together (you don't have to use all of them on every job)
The set with bag weighs under 3 pounds
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOH4J10 - ALUM PUSH PULL RODS-PLAIN
$92.50
SET OF 20 ALUMINUM PUSH / PULL RODS - PLAIN - 45 Feet
Set of 20 PLAIN Push-Pull Rods in CaseIncludes Vinyl Drawstring Carry Bag
45 Feet when all rods are screwed together (you don't have to use all of them on every job)
The set with bag weighs 5.5 pounds
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOH4K20 - ALUM PUSH PULL RODS-PLAIN
$167.50
SET OF 10 ALUMINUM PUSH / PULL RODS - COATED - 22.5 Feet
Set of 10 COATED Push-Pull Rods in CaseThe Rods in this kit are Coated Aluminum
Includes Vinyl Drawstring Carry Bag
22.5 Feet when all rods are screwed together (you don't have to use all of them on every job)
The set with bag weighs under 3 pounds
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOH4L10 - ALUM PUSH PULL RODS-INSUL
$123.50
SET OF 20 ALUMINUM PUSH / PULL RODS - COATED - 45 Feet
Set of 20 COATED Push-Pull Rods in CaseThe Rods in this kit are Coated Aluminum
Includes Vinyl Drawstring Carry Bag
45 Feet when all rods are screwed together (you don't have to use all of them on every job)
The set with bag weighs 5.5 pounds
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOH4M20 - ALUM PUSH PULL RODS-INSUL
$229.95
NOODLE FISH CHAIN
The World's Best Fish Chain!
10 feet long! Fish up and down walls. For non-insulated, paper, or foil backed walls.
This fish chain doesn't tangle... It's a special super strong thin ball chain that will slither thru most anything... and then back into its Shirt Pocket Pouch.
To use it, tie the wire on through a small hole at the end of the chain. Then just drop it down the wall (the large ring on the end prevents it from dropping through a 7/8 inch hole in the header), make a 3/8" hole where you want to pull the wire out for the jack, stick the Magnetic Retriever in, and wiggle it around. The Noodle Fish Chain globs onto the magnet and you pull it out of the wall!
If the drywall is mushroomed into the wall, use our 9" Hook Wire (below) to grab the chain off the magnet!
Comes with sandman.com 30-Day Moneyback Guarantee

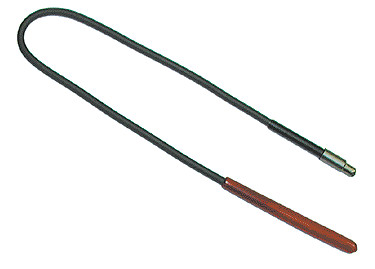

Part # TOO2C18" FLEXIBLE MAGNETIC RETREIVER
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOO2N9" HOOK WIRE
NOTE: On the Spring Steel Hook Wires both ends are bent in the same direction so you know which way your hook is facing!
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOO2L
18" Hook Wire
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOO2M18 INCH HOOK WIRE
$4.99
TELESOPING POCKET FISH
Telescoping Pocket Fish with Pocket Clip. 5 inches long. 22 inches extended.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOO5TBLUE / GRAY 814 TYPE PUNCH TOOL with 66 and 110 BLADES
Blue / Gray Punch Tool
with 66 and 110 Blades
Highest Quality Punch Tool with industry standard Twist-to-Release Blades.
Heavy Duty Punch Tool has High/Low Impact Selector, and a Cavity in the Top to store a 66 or 110 Blade (both are included).
Spare Blade locks into the Cavity in the tool, and releases easily with a twist of the Release Knob.
Uses industry standard 814 Type Blades.
NOTE: You MUST use a Punch Tool to terminate wires onto 66, 110, BIX and Krone Blocks and Jacks. If you use a screwdriver to force the wire into the connection, you'll destroy the connection (spreading out the pin), causing strange intermittent problems until the Block is replaced.
Price Reduction!
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND9D
BLUE / GRAY 814 TYPE PUNCH TOOL with 66 BLADE
Same Punch Tool as above, but with just a 66 Blade (no 110 Blade).
Price Reduction!
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND9EBLUE GRAY PUNCH TOOL W/66 BLAD
$32.95
66 BLADE for 814 TYPE PUNCH TOOL
Replacement 66 Punch Blade
Industry standard 66 Blade. Flip it around for CUT or NON-CUT.
Price Reduction!
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND9F66 BLADE FOR 814 TYPE PUNCH TO
$9.95
110 BLADE for 814 TYPE PUNCH TOOL
Replacement 110 Punch Blade
The 110 Blade is used on 110 Blocks, and just about all of the CAT5 and CAT6 Keystone jacks made.
Industry standard 110 Blade. Flip it around for CUT or NON-CUT.
Price Reduction!
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND9G110 BLADE FOR 814 TYPE PUNCH T
$9.95
66 AND 110 CUT TYPE BLADE for 814 TYPE PUNCH TOOL
Replacement 66 and 110 Cut Type Punch Blade
Industry standard 66 and 110 Blade. Both sides CUT. Flip it around for 66 or 110.
Price Reduction!
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND8I66+110 CUT PUNCH BLADE FOR 814
$9.95
ECONOMY KRONE BLADE for 814 TYPE PUNCH TOOL
Economy KRONE Blade
The KRONE Blade is used on all Blocks manufactured by KRONE (now ADC). The most popular use of these Blocks has been as RJ-21X Blocks installed in Nynex (Verizon) areas.
This Blade is a good choice for a phone man who only occasionally needs to punch down wires on a KRONE block, and it works fine. The regular KRONE Blade has a fancy scissors action to cut the wire, which makes it very expensive - especially for occasional use.
Flip the Economy KRONE Blade around for CUT or NON-CUT.
Price Reduction!
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND5EECONOMY KRONE BLADE FOR 814
$9.95
KRONE BLADE for 814 TYPE PUNCH TOOL
KRONE Blade
The KRONE Blade is used on all Blocks manufactured by KRONE (now ADC). The most popular use of these Blocks has been as RJ-21X Blocks installed in Nynex (Verizon) areas.
This regular KRONE Blade cuts the wires every time you use it. There's actually a tiny scissors built-in to the Blade.
NOTE: This KRONE Blade does NOT fit in the Cavity at the end of an industry standard 814 Type Punch Tool (it's too big). Because it's so expensive, make sure you find a safe place to store it when you're not using it!
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND5IKRONE BLADE FOR YELLOW/BLUE PU
$66.95
BIX BLADE for 814 TYPE PUNCH TOOL
Northern Telecom BIX Blade
The BIX Blade is used on all BIX Blocks manufactured by Northern Telecom. In the US, the most popular use of these Blocks has been on Northern Telecom/Nortel PBX frames. This is the most popular Block used in Canada.
The BIX Blade cuts the wires every time you use it. There's actually a tiny scissors built-in to the Blade.
NOTE: The BIX Blade does NOT fit in the Cavity at the end of an industry standard 814 Type Punch Tool (it's too big). Because it's so expensive, make sure you find a safe place to store it when you're not using it!
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND5JBIX BLADE FOR YELLOW/BLUE PUNC
$66.95
110 Multi-Pair Punch Tool
Punches down 5 Pair at a Time on a 110
Block
Works Great on Patch Panel 110 Punchings!
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND7QSCISSORS with STRIPPING NOTCHES
Scissors
with Stripping Notches
The highest quality Phone Man's Scissors we've found!
The edge of the blade is serrated, which keeps the cable or wire(s) from slipping forward out of the Scissors as you try to cut it.
It has two Stripping Notches. One for 24 gauge wire, and one for 22 gauge wire.
The Stripping Notch is the safest way to strip the insulation from telephone wire. It won't put a notch in the wire (like a set of Dikes would), which would cause the wire to break after it was flexed a few times.
To strip a wire, hold your finger over the wire in the notch, and pull the insulation off by moving the Scissors, which holds the insulation - allowing it to slide off the wire.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND1AERGONOMIC SCISSORS with STRIPPING NOTCHES
Ergonomic Scissors
with Stripping Notches
The highest quality Ergonomic Phone Man's Scissors we've found!
The edge of the blade is serrated, which keeps the cable or wire(s) from slipping forward out of the Scissors as you try to cut it.
It has two Stripping Notches. One for 24 gauge wire, and one for 22 gauge wire.
The Stripping Notch is the safest way to strip the insulation from telephone wire. It won't put a notch in the wire (like a set of Dikes would), which would cause the wire to break after it was flexed a few times.
To strip a wire, hold your finger over the wire in the notch, and pull the insulation off by moving the Scissors, which holds the insulation - allowing it to slide off the wire.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND4TSMALL SCISSORS POUCH
Small Scissors Pouch
with Belt Loop
Small Scissors Pouch holds just the blade. You can grab the
Scissors quickly by the handles.
Genuine Leather with Riveted Construction. This pouch will last for many years!
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND1BTINY CABLE STRIPPER
Tiny Strippers
Strips the outer jacket from CAT3, CAT5 and CAT6 Voice and Data Cables.
Two Notches for Stripping 2, 3 and 4 Pair Cable. Easily adjust the stripper blade for each type and brand of cable with a Phillips screwdriver.
This is hands-down the best way to Strip voice and Data Cables! Keep a couple handy!
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOO9K
TINY CABLE STRIPPER - REPLACMENT STRIPPER BLADE
This is the replacement blade for the stripper, not the cut blade (use a scissors or dikes to cut the cable).
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOO9JTINY STRIPPER REPL STRIP BLADE
$0.89
QUICK YELLOW CABLE STRIP TOOL
Quick Yellow Cable Stripper with Manual 110 Punch Blade
This is a great spare and backup to have with you!
Phone Orders at 630-980-7710, or this item can be ordered Online:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT4F3/8 and 7/16 Inch CAN WRENCH
Standard Can Wrench
Standard Can Wrench for Binding Posts, Ground Clamps, Telco and CATV Pedestals and LOTS MORE!
Has one 3/8 inch socket, and one 7/16" socket.
5 5/8 inch total length, with 1 1/2 inch deep sockets. Small size makes it easy to fit into your tool pouch or case.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND1IFOLDING CABLE REEL HOLDER
Folding Cable Reel Holder
Folds and Stores Flat to Only 3/4 Inch!
26 Inches Wide by 14 Inches High
Holds 2 Standard Reels
Comes with sandman.com 30-Day Moneyback Guarantee
Part # CID8OEASY KARY JUNIOR FOLDING CABLE REEL HOLDER
Easy Kary Junior Folding Cable Reel Holder
Folds and Stores Flat... Carries like a briefcase
29 Inches Wide by 15 Inches High
Holds 2 Reels. Comes with 2 Axles for Reels. Axles store inside the frame.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOH4CBUTT SET BELT CLIP
Save Your Belt Loops!
Click to see bigger picture
Even if you carry your Butt-Set in your case, this clip works great while you're at the customer's site, and it saves your belt loops!
Slides on a 2" or smaller belt.
Phone Orders at 630-980-7710, or this particular item can be ordered Online with Priority Mail shipping:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOO2ASMALL PARTS POUCH WITH CLIP
Just like the Phone Company Issued!
Get Organized!
Free Super Adhesive Label included if you remember to tell us what to put on it!
Keep as many as you need on a ring in your car or truck. Take whichever Pouch you need inside for the job.
Double Ended Clip and Key Ring not included, but available at most hardware stores.
Black
Leather Small Parts Pouch
Small Parts Pouch, snapped on Butt-Set Belt Clip (click for bigger picture)
Installers and Repairmen have been using these for years - usually carrying a couple!
Load them with different small parts you might need quickly, like screws, anchors, fuses etc.
Snap them on your belt loop, tool belt, or our Butt-Set Belt Clip:
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOO4ACANVAS ZIPPER BAG
7 inch by 12.5 inch Canvas Zipper Bag
Installers and Repairmen have been using these for years. It keeps small parts organized by type of part, type of job, type of tool, or just a handy small pouch to carry tools in.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # HND1LWorld's Best Modular 6-8 Pin Crimp Tool - Ratcheting
Ratcheting Crimp Tool Doesn't Release Until Crimp is Complete
Does 6 Pin (RJ-11 Type 2-4-6) & 8 Pin (RJ-45 Type) Mod Plugs
We've tried all the others and this is the only one we can depend on!
Heavy duty metal construction with comfortable hand grips.
The secret is the floating crimper pins which are designed to ALWAYS stay parallel to the pins in the plug! Most crimpers start crimping on an angle at one side of the plug - causing the pins to sometimes get cocked.
We put a
lot of modular plugs on all kinds of
solid wire and flat custom cables in our
production department. We are so confident in these crimp tools that we've made our own Heavy Duty Crimpers using these tools to reduce hand strain for our production workers (we use three of them in our shop). We remove the hand grips and drill and tap one of the handles on the tool to mount it to the custom arbor press. We replace the actual Crimp Tool, which is the same one we stock and you can buy here, about once a year. They do eventually just plain wear out! (Sorry, we don't sell these Heavy Duty Crimpers) |
![]() |
I used to use an expensive AMP crimper that uses expensive replaceable dies which ONLY work with AMP brand plugs (which are hard to find). If someone crimped a regular mod plug (not AMP brand) in the tool, the pins on the soft pot metal die would get bent over and the die would be destroyed.
After throwing away my AMP crimp tool with the replaceable dies I've never had a problem with mod plugs! This is the most dependable crimper you can buy, and does 6 position plugs (2,4 or 6 pins) and 8 position plugs (does not do handset plugs - see our Handset Crimper below).
Suitable for flat silver satin cord and solid wire cable. Includes cutter and stripper for flat wire.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TLS1PWorld's Best Handset and 2-4-6 Pin Modular Crimp Tool - Ratcheting
Ratcheting Crimp
Tool Doesn't Release Until Crimp is Complete
Does 6 Pin (RJ-11 Type 2-4-6) & Handset (RJ22, RJ10, or RJ9 Type) Mod Plugs
Heavy duty metal construction with comfortable hand grips.
The secret is the floating crimper pins which are designed to ALWAYS stay parallel to the pins in the plug! Most crimpers start crimping on an angle at one side of the plug - causing the pins to sometimes get cocked.
This is like the regular 6 & 8 Crimper (above), but does Handset plugs and regular 2-4-6 Pin plugs - not 8 pin plugs. Suitable for flat silver satin type cord and solid wire. Includes cutter and stripper for flat wire.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOO5PUniversal Handset, 2-4-6 Pin (RJ-11/12/14) and 8 Pin (RJ-45) Modular Crimp Tool - Ratcheting
All-in-One Ratcheting Crimp
Tool Doesn't Release Until Crimp is Complete
Does Handset
(RJ22, RJ10, or
RJ9 Type), 6 Pin (RJ11,
RJ14, or RJ12 Type 2-4-6)
& 8 Pin (RJ45 Type) Mod
Plugs
Heavy duty metal construction with comfortable hand grips.
The secret is the floating crimper pins which are designed to ALWAYS stay parallel to the pins in the plug!
8 Pin & 6 Pin on One Side
4 Pin Handset on Other Side
Suitable for flat silver satin type cord and round solid/stranded cable. Includes cutter and stripper for flat wire, and a stripper for round cable:
Strips Correct Amount of Jacket from Round Wire for an RJ45 8 Pin Type Plug!
Use a Scissors Not Dikes to Cut the Cable so the wires have a nice flat end that you can see through the clear connector to make sure they are all the way in.
You'll probably need to cut it flat with scissors after arranging the wires in order, before you insert the wires into the plug.
I find it easier to strip quite a bit of jacket off, arrange the wires, then cut it flat to the correct length with scissors before inserting the wires in the plug.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOO5GModular Plugs for Flat and Round Wire
On most plugs for Solid Wire, the bottom half of the rectangle where you insert the cable is rounded - like a half moon (not all manufacturers do this, but the ones we carry do). Never use a modular plug with a rectangular entrance on solid wire, since it's only make for stranded or tinsel wire.
Solid Wire Plugs are made to work on the round solid copper wires that are used insides the walls,
and they also work on Stranded/Flat Wire.
It's often faster to crimp a modular plug plug onto the end of the cable that's going to plug into the equipment, rather than put up a jack and use a flat cord to connect to the equipment.
Stranded Wire Plugs are used on flat handset and base cords, which have tinsel or stranded wire. Tinsel wire is a bunch of copper clad ribbons, which is quite flexible compared to stranded or solid copper wire.
Stranded Wire Plugs won't work on solid wire because the points on the pins just put dimples into the tops of the solid copper wire. The pins work their way up and give you an intermittent connection almost immediately. They don't cut into the sides of the wire like plugs made for solid wire do.
Solid Wire Plugs dig into the sizes of copper wire, making a gas tight connection. A gas tight connection means that air can't get between the wire and the metal used for the IDC (Insulation Displacement Connection) terminal, causing oxidation and an eventual intermittent connection.
You will really be sorry if you use flat type stranded plugs on solid copper wire!
They cause hard to find intermittent problems that will cost you more in service calls than you made on the job in the first place... to say nothing of the really upset customer.
If you put the wrong plugs on the cable, the only fix is to go back and crimp the correct plugs on the cable!
Click HERE to see a Cable Pinout Chart to see where the wires go for each type of plug.
MODULAR HANDSET PLUGS
Modular Handset Cord Plugs are ONLY for Stranded Wire!
Sometimes called an RJ22, RJ10, or RJ9 Plug
Never crimp a handset plug on solid copper wire! It will be intermittent almost immediately!
Bag of 100
Comes with sandman.com 30-Day Moneyback Guarantee
Part # XMT1R4 CONDUCTOR SOLID & STRANDED MODULAR PLUGS
4 Conductor Modular Plug for Solid & Stranded Wire
Called a 6P4C Plug
Bag of 100
Comes with sandman.com 30-Day Moneyback Guarantee
Part # XMT9S4 CONDUCTOR STRANDED ONLY MODULAR PLUGS
4 Conductor Modular Plug for Stranded Wire ONLY
Called a 6P4C Plug
Never crimp this Stranded Only plug on solid copper wire! It will be intermittent almost immediately!
This plug is fine to use on flat telephone base or handset cord, but unless you are doing a lot of them it's better to use the Solid & Stranded Plug (above) so you don't mix them up and make a mistake!
Bag of 100
Comes with sandman.com 30-Day Moneyback Guarantee
Part # XMT3N6 CONDUCTOR SOLID & STRANDED MODULAR PLUGS
6 Conductor Modular Plug for Solid & Stranded Wire
Called a 6P6C Plug
Bag of 100
Comes with sandman.com 30-Day Moneyback Guarantee
Part # XMT1T8 CONDUCTOR CAT5
RATED SOLID &
STRANDED MODULAR PLUGS
8 Conductor CAT5 Rated Modular
Plug for Solid & Stranded Wire
Called a 8P8C or RJ45 Plug
Works fine for CAT3.
Bag of 100
Comes with sandman.com 30-Day Moneyback Guarantee
Part # XMT1EBLUE UNIVERSAL 2-4-6-8 PIN MODULAR PLUG
Blue Universal
2-4-6-8 Pin Modular Plug
An 8 Pin Mod Plug that slides into any Modular Jack - 2, 4, 6 or 8 Pins!
Use any regular 8 Pin Modular Crimping Tool.
Works with both Solid and Stranded wire (flat and round).
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TOO5O6 CONDUCTOR K-PLUG
Non-Snag K-Plug
for Stranded Wire
This is the Plug to use with any Telephone Line Tester!
Non-Snag Clip on the Modular K-Plug is long enough to push with a pair of gloves on, and it won't break off!
Because it's longer than a standard Modular Plug, it's much easier to use with Testers that you need to plug-in and out all the time.
Use with stranded flat type wire, not solid copper wire.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # TLS1D22-24 GAUGE DELUXE WIRE WRAP & UNWRAP TOOL
Aluminum Handle Contains both Wrap & Unwrap Tools
Unscrew Handle to Reverse Tip for Wrap / Unwrap.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT8I30 GAUGE DELUXE WIRE WRAP & UNWRAP TOOL
Aluminum Handle Contains both Wrap & Unwrap Tools
Unscrew Handle to Reverse Tip for Wrap / Unwrap.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT8B22-24 GAUGE ECONOMY WIRE WRAP TOOL
Red Plastic Handle Wire Wrap Tool for 22-24 Gauge Wire
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9E20-26 GAUGE ECONOMY WIRE UNWRAP TOOL
Yellow Plastic Handle Wire Unwrap Tool with Sleeve for 20-26 Gauge Wire
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT9FCUTTER & STRIPPER for WIRE WRAPPING
This is the easiest way to cut and strip wire to the
correct length with one squeeze of the handles,
and a pull on the wire!
Strip and cut to the exact length required.
Comes with cushioned grips and interchangeable 22-24 AWG and 24-26 AWG blades.
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT8Q
22-24 GAUGE WIRE STRIP REPLACEMENT BLADE ONLY
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT4I22-24GA WIRE WRAP STRIP BLADE
$12.95
24-26 GAUGE WIRE STRIP REPLACEMENT BLADE ONLY
Comes with sandman.com 30-Day Moneyback Guarantee
Part # KIT4J24-26 WIRE WRAP STRIP BLADE
$12.95
VIDEO: Installation Secrets HIGHLIGHTS - 1 Hour - FREE on YouTube!
Installation Secrets Highlights Training Video with Mike Sandman
1 Hour of the Full 4 Hour DVD Training Video... Imagine what you'd learn in the other 3 Hours?
DON'T Watch This Video
Unless You Need to Run Wire!It's just short clips of each scene in the 4 Hour Version, but you can learn a lot that will save you time and make your job easier in just an hour...
- Fastest Ways to Fish Insulated and Non-insulated Walls
- Fishing Pipes with a Zillion 90's
- Finding Unlabeled Wires
- Fishing Into Attics
- Fastest Ways to Fish Ceilings
- Fishing Walls with Styrofoam Insulation
- Avoiding Drilling through Water Pipes
- Fishing through Voids Between Walls
- Fishing Walls with Headers and Fire Stops
- Running Wire Without Lifts in Warehouses
- Preventing Kinks in Cables that can Slow Data
- AT&T 110, N.T. BIX and Krone Blocks
- Testing Cables
- Stripping Cables
- Splicing Cables
- Testing Paging Systems
- Testing AC Circuits
- Testing DTMF on Dialers, Voice Mail and IVRs
- Testing RS-232
- Testing Loop Current
- Testing db Circuit Loss
You can order it on DVD for $5.00 if you'd like... But the Full 4 Hour 2 DVD Set (below) is a MUCH BETTER DEAL!
Comes with sandman.com 30-Day Moneyback Guarantee
Part # DSI8A VIDEO: Installation Secrets (4 Hours)
Installation Secrets
Training Video
with Mike Sandman
4 Hours • DVD
Whether you've been doing this for 2 weeks or 20 years...If this is what you do for a living, a few dollars and some time watching our 4 Hour Training Video could save you years of time, and you'll get home in time for dinner!
We show you the fastest and easiest ways to run wire, and a lot more in this 2 Disk Set.
When I started over 30 years ago, I used to feed a fish tape into an insulated wall, figuring that it had to come out eventually? 50 feet later it usually still wasn't out, so I'd try it again. Regular fish tapes are made coiled at the factory, so they coil in the wall as you feed them in - and they usually don't come out where you want them to!
I couldn't believe how fast and easy it was after I learned these techniques!
Some of the Dozens of Topics Covered:
|
|
Regularly $79.95. Mention you saw it on the Internet to get this special price...
Comes with sandman.com 30-Day Moneyback Guarantee
Part # DSI8B VIDEO: Basic Installation 2 (6 Hours)
Basic Installation 2
Training Video
with Mike Sandman
6 Hours • DVD3 Disc Set
Watch Mike Sandman Install 4 KSUs!
This is as close as it gets to working with a Journeyman while he builds the frames for four different phone systems - but this Journeyman gives you tons of tips as he goes. An Apprentice can get years of experience building frames... In 6 Hours of Training!
A Training Video is actually better than working with a Journeyman, who's not going to stop and explain stuff to you. If you didn't understand something just hit the REWIND button, and watch it over as many times as you need to.
Grab some cable and blocks, and practice as you watch this Video.
You should be able to go out and install
a phone system after watching this Video!
NOTE: This Video doesn't include programming information, so you'll
have to know how to program the system you install.
4 Phone Systems are Installed:
The customer bought a new fully modular phone system, which we install from scratch.
Then he upgraded to a system with modular jacks for the COs, but an AMP connector (25 pair) for the stations.
Then he upgraded to an Altigen PC based phone system, which uses a special 25 pair connector for both the COs and stations.
Finally, the customer upgrades to a 3Com NBX IP based phone system, where the COs and T1 connect with modular jacks, and the stations connect to a 19" rack mounted Ethernet hub or switch and patch panel, just like PC workstations.
Learn to do it right... Neatly:
|
|
Makes an Apprentice More Valuable Immediately!
7 minutes out of the 6 Hour 3 DVD Set (on YouTube):
Regularly $159.95. Mention you saw it on the Internet to get this Limited Time Special Price...
Comes with sandman.com 30-Day Moneyback Guarantee
Part # DSI8D
