AUTOMATIC DIALERS, NO-DIAL PHONES and TOLL RESTRICTORS
NO-DIAL PHONES
Brand New No-Dial Desk and Wall Phones in Black, Red, and Ivory.
These phones work great as an extension phone to private payphones, as a courtesy phone for taxis or customer service, or as an emergency phone.
Use our Super Tiny Dialer to dial a number automatically when then handset is lifted, which makes it into a "Hot Dial" Phone.
The Super Tiny Dialer can be installed inside the phone, at the jack where the cord plugs into the modular jack, or in the phone room. We can install and program the Super Tiny Dialer for $10 above the cost of the phone and dialer.
These phones come with a built-in bell for incoming calls, an amplified handset, 12 foot handset cord, and 14 foot base cord (on the Desk Phone).
Prevent Wall Phone Theft!
Modular Wall Phone Security Lock
Our 2554 Wall Phones are available with a Security Lock, which allows the installer to use a standard modular wall jack, but lock the phone to the wall with a screw, so it can't be removed.
WARNING!
All 2554 Wall Phones AREN'T Created Equal!
These phones look alike, but the one on the left is a piece of junk!
Handset Slammed Down TWICE!
Handset Slammed Down TEN TIMES!
I slammed the handset down hard on both of these phones. We sell the one on the right!
The Chinese can copy stuff, but they don't always understand what they're copying! It's pretty obvious you can't use regular plastic for the cradle on a wall phone!
No-Dial RED 2554 WALL Set
Part Number: MSC1O Price: $34.95 ||| 3+ Price: $33.95
No-Dial BLACK 2554 WALL Set
Part Number: MSC1N Price: $34.95 ||| 3+ Price: $33.95
No-Dial IVORY 2554 WALL Set
Part Number: MSC1P Price: $34.95 ||| 3+ Price: $33.95
2554 WALL PHONE SECURITY LOCK - INSTALLED
SECURITY OPTION: We install it on the phone for you...
Prevent Wall Phone Theft!
Modular Wall Phone Security Lock
Our 2554 Wall Phones are available with a Security Lock, which allows the installer to use a standard modular wall jack, but lock the phone to the wall with a screw, so it can't be removed.Part Number: MSC1G Price: $5.00
2554 WALL PHONE SECURITY LOCK - Do-it-Youself Kit
Use a #20 drill to install the 5/32 inch diameter Pop Rivet
Includes Pop Rivet, Nylon Spacer and Metal StrapPart Number: MSC2I Price: $1.59
No-Dial RED 2500 DESK Set
Part Number: CLN6T Price: $49.95 ||| 3+ Price: $46.95 ||| 10+ Price: $45.00
No-Dial BLACK 2500 DESK Set
Part Number: CLN6J Price: $49.95 ||| 3+ Price: $46.95 ||| 10+ Price: $45.00
No-Dial IVORY 2500 DESK Set
Part Number: CLN6S Price: $49.95 ||| 3+ Price: $46.95 ||| 10+ Price: $45.00
2 Pair Stainless Wall Phone Jack
Wires connect to regular Screw Terminals
Part Number: CHM6J Price: $3.72 ||| 25+ Price: $3.49
BRAND NEW!
2500 No-Dial Set with Beehive Ring IndicatorUse our Super Tiny Dialer to dial a number automatically when then handset is lifted, which makes it into a "Hot Dial" Phone.
The Super Tiny Dialer can be installed inside the phone, at the jack where the cord plugs into the modular jack, or in the phone room. We can install and program the Super Tiny Dialer for $10 above the cost of the phone and dialer.
Amplified (and Hearing Aid Compatible) K-Style Handset Mechanical Bell Ringer with On/Off Switch 14' Mod Mtg. Cord 12' Mod HS Cord Red Color with Red Beehive (White Beehive Available) Data Port Neon (90-140VAC/DC) Beehive Light acts as a Ringing Indicator and Neon Message Waiting Light 2 Year Warranty!
Part Number: MSC1J Price: $59.95
Create
your own PC applications that use Touch Tones!
The PC GRABBER Model 307 is made for developers that need a way to read DTMF into their computer application, thru a serial port
It will also send DTMF using a reduced AT command set (similar to using any Hayes type modem). Can be used with any terminal program like HyperTerminal, Zterm or Minicom. It doesn't come with any software.
The PC GRABBER Model 307 simply plugs into a 9 pin serial port, and has a modular jack for the phone line. It's powered by the computer's serial port. Comes with a cord with alligator clips, or use any modular cord.
Easy to Use:
- ATD13125551212 dials 1-312-555-1212
- Use an AT Command to Answer the Line
- Use an AT command to Hang-up the Line
- Get a RING when the line rings
- Get ASCII digits when the Model 307 hears them
Part Number: TOH5F Price: $209.95
NO-DIAL TRIMLINE PHONE - WHITE
No-Dial 'Trimline Style' Phone - Wall or Desk
Brand New Phones!
Put it on a desk, or mount it on the wall.
Complete with 6' handset cord, 7' base cord, and ringer with on/off switch.
Our Super Tiny Dialer won't fit inside the Trimline Style set, but you can plug the Super Tiny Dialer into the modular wall jack (and plug the Trimline's cord into the Dialer), or put the Super Tiny Dialer in the phone room.
Put this phone in your teenager's room, and watch the look on their face when they pick it up and try to dial!
Actually, they work better as a courtesy phone in a bar or hotel, or combine it with our Super Tiny Dialer (a little farther down the page) to use it as a Hotdialer to call a taxi company.
Available in White and Black (below).
Part Number: MIS9L Price: $32.95 ||| 3+ Price: $29.95
NO-DIAL TRIMLINE PHONE - BLACK
No-Dial 'Trimline Style' Phone - Wall or Desk
Same as above, but in Black
Part Number: MIS9K Price: $32.95 ||| 3+ Price: $29.95
No-Dial 'Trimline Style' Phone - Wall or Desk
Brand New Phones!
Put it on a desk, or mount it on the wall.
Complete with 6' handset cord and 7' base cord
Features:
- 3 Emergency One Touch Numbers
- 10 Two Touch Numbers
Our Super Tiny Dialer won't fit inside the Trimline Style set, but you can plug the Super Tiny Dialer into the modular wall jack (and plug the Trimline's cord into the Dialer), or put the Super Tiny Dialer in the phone room.
Available in Black and White (below).
Part Number: MSC2P Price: $18.95 ||| 3+ Price: $16.95
Dial 'Trimline Style' Phone - Wall or Desk
Same as above, but in White
Part Number: MSC2Q Price: $18.95 ||| 3+ Price: $16.95
2-Piece Hospital Phone
Brand New Phone!
Designed to meet the needs of hospitals, nursing homes, and long-term care facilities - and it works great as an inexpensive single line analog phone.
Reduce cross-contamination risks, and telephone cleaning and repair costs using these high quality but inexpensive single-use/patient phones.
In a single use healthcare environment, just give the patient the phone to take with them when they leave.
Side-mount telephone bedrail holder is available (below), which fits all popular patient room bed brands.
Features:
Part Number: CLN6G Price: $12.95 ||| 5+ Price: $11.95
HOSPITAL PHONE SNAP-ON BRACKET (For Hospital Beds)
Hospital Phone Snap-on BracketFits most Hospital Beds
Side-Mount Telephone Bedrail Holder is made exclusively for our 2 Piece Hospital Phone (above).
Features:
- White Telephone Bedrail Holder
- Open-side design assures data port access
- Adjustable bedrail slide release mounting
- Rubber stabilizer prevents rotation on bedrail
- Fits most popular bedrail models
- Also fits firmly on desk or nightstand
Part Number: CLN8F Price: $8.95 ||| 5+ Price: $8.00
NO-DIAL HANDSET with CUP HOOKSWITCH and ARMORED CORD
Weatherproof for Indoor or Outdoor Use!
Surface or Flush Mount!
Lexan Handset with Armored Cord is Indestructible!
A Complete Telephone... Built into a Sturdy Handset
Works Great as a Door Box for a PBX Station Port!
No-Dial Handset works with any regular analog telephone line (POTS line) or single line station port on a phone system.
Weatherproof Cup Style Hookswitch on a gasketed double gang Stainless Steel Plate. Sealed Magnetic Hookswitch Contacts. There are no moving parts.
Heavy Duty Double Gang Surface Mount Weatherproof Box, with several entrance points (rear, top or bottom wire entry). Heavy Duty Box accepts conduit as well as wire.
Connects using a modular line cord, or use the screw terminals on the jack to hard-wire the cable to the No-Dial Handset.
Use it with the included Surface Mount Box, or mount the Stainless Double Gang Faceplate so it's flush mounted to a regular double gang masonry box in a wall (you must use that type of box so the holes on the faceplate line up with the screw holes on the box).
Our Super Tiny Dialer won't fit inside the Surface Mount Box, but you can put the Super Tiny Dialer in the phone room.
If a station on the phone system can be programmed so it automatically calls a station (or hunt group) when it goes off-hook, you don't need a separate Hot Dialer.
Part Number: MIS6I Price: $139.95
NO-DIAL HANDSET with CHROME HOOKSWITCH and ARMORED CORD
Weatherproof for Indoor or Outdoor Use!
Surface or Flush Mount!
Lexan Handset with Armored Cord is Indestructible!
A Complete Telephone... Built into a Sturdy Handset
Works Great as a Door Box for a PBX Station Port!
No-Dial Handset works with any regular analog telephone line (POTS line) or single line station port on a phone system.
Chrome Hookswitch on a gasketed double gang Stainless Steel Plate.
Heavy Duty Double Gang Surface Mount Weatherproof Box, with several entrance points (rear, top or bottom wire entry). Heavy Duty Box accepts conduit as well as wire.
Connects using a modular line cord, or use the screw terminals on the jack to hard-wire the cable to the No-Dial Handset.
Use it with the included Surface Mount Box, or mount the Stainless Double Gang Faceplate so it's flush mounted to a regular double gang masonry box in a wall (you must use that type of box so the holes on the faceplate line up with the screw holes on the box).
Our Super Tiny Dialer won't fit inside the Surface Mount Box, but you can put the Super Tiny Dialer in the phone room.
If a station on the phone system can be programmed so it automatically calls a station (or hunt group) when it goes off-hook, you don't need a separate Hot Dialer.
Part Number: MIS6C Price: $139.95
The World's Best Autodialer / Hotdialer!
Small enough to fit INSIDE many phones!
The Super Tiny Dialer™ is a single line, line powered dialer (no external power or batteries required). Simply connect it in-series with one or many phones (or a phone system), dial a code you program (like ##), and it dials the pre-programmed phone number. For long distance use, you'd program it with the PIC code (like 1010288 for AT&T), or other access number for the Long Distance Company you're using.
Use the Super Tiny Dialer™ to dial any phone number you program, by dialing any activation code you choose yourself. It's great for speed dialing a long number like an employee's beeper, when you dial a simple trigger code, like **1.
The Super Tiny Dialer™ can also be used as a Hot Dialer... It can automatically dial a number as soon as the handset is lifted. Works great with our no-dial phones for calling taxis, 911, customer service etc. When used as a Hot Dialer, it does not dial the programmed number on incoming calls.
One of the most popular uses for the Super Tiny Dialer™ is to dial *67 automatically as soon as you go off-hook, which will block Caller ID from being sent with every call. The person on the other end will see "PRIVATE" or "UNAVAILABLE."
The Super Tiny Dialer™ has Fraud Prevention built-in, which prevents dialing with hand-held DTMF devices that fit over the transmitter (mic) on a telephone handset. There are also timers that let you prevent someone from hookflashing quickly and dialing a number themselves (requires proper programming of several options).
It's easily installed in-series with the phone line using a modular jack. Password protected programming is done via DTMF from a connected phone, or over the phone line from a remote location. Programming of this device should be done by experienced technicians. We don't offer end-user programming support.
CLICK HERE to view the programming instructions in PDF format.
WARNING:
If used in a Life Safety application like a 911 phone, Elevator Phone or Pool Phone, be sure the customer agrees in writing to check the operation on a regular basis (or don't sell it to them). Something may go wrong with the line, the pair, the Priority Line Grabber™, the Super Tiny Dialer™, or the phone. An emergency isn't the time to find out there's a problem! Be sure to call the Police or Fire non-emergency number to let them know you're going to be testing, before the test.
Use our PC Grabber Deluxe Model 3 (part number TOH5F) for programming multiple dialers with the same or similar numbers, automatically. Just write a simple script, then play it into the dialer (on-site or remotely).
In quantity, we can program the Super Tiny Dialer™ with any desired number and operating mode right from the factory, so you don't have to do any programming.
Part Number: CID6H Price: $55.95 ||| 3+ Price: $52.95 ||| 10+ Price: $52.00
SUPER TINY DIALER Modular Installation Aids
The FASTEST & EASIEST way to install a Hot Dialer... |
||
|
|
|
INSIDE a Phone... |
||
Just Plug it In!
Use our Modular Jack to Modular Plug Adapters to make installing a Super Tiny Dialer Hot Dialer inside a phone, a snap.
The idea is to use the old modular jack, which plugs into the Super Tiny Dialer, and a new Modular Adapter Jack (same type as the old one) to plug into the other side of the Super Tiny Dialer:
The end result is that the dial tone goes into the 623 jack, through the Super Tiny Dialer, and into the network of the phone:
- Remove the physical 623 jack from the housing or base of the phone, but don't remove the wires!
- Place the correct type of 623 Jack to Modular Plug Adapter in the housing or base (check the tiny 623-X number molded or stamped in a small cavity on the original jack - Click HERE to see a sample jack model number)
- Insert the modular plug from the 623 to Modular Adapter into the phone line side of the Super Tiny Dialer.
- Insert the short modular cord (included with the Super Tiny Dialer) into the telephone side of the Super Tiny Dialer.
- Insert the other end of the short modular cord into the old 623 jack (that's still attached to the network of the phone).
- For a wall phone (2554 - with the sliding jack), see the 523 Adapter instructions below.
There's no soldering, no figuring out where the wires go. It's all Modular!
It's just plain QUICK & Easy!
For some phones, you may have to remove the case (box) from the Super Tiny Dialer, and install it in the phone with double stick tape (make sure the tape covers the entire bottom of the circuit board so there are no shorts).
We have four types of Modular Jack to Modular Plug Adapters:
623-D to MODULAR DIALER ADAPTER
Part Number: TLS4R Price: $2.59
623-K to MODULAR DIALER ADAPTER
Part Number: TLS4Q Price: $2.59
623-P to MODULAR DIALER ADAPTER
Part Number: TLS4P Price: $2.59
523 to MODULAR DIALER ADAPTER KIT
The 523 is the sliding plug in the back of a standard 2554 wall phone.
Putting a dialer inside a 2554 wall phone is a little different
than putting it in a desk phone, since the original 523 jack
won't plug into a regular modular jack on a dialer.Kit includes a 623-K modular jack (which replaces the original 523).
To use this kit:
- Remove and discard the original 523 sliding plug (note where the two or four wires went inside the phone).
- Insert the spade lugs from the included 623-K jack into the 2554's network, in the same positions as the wires you removed from the 523 jack (you may have to solder the wires to the circuit board in the phone, if the 523 wasn't attached with spade lugs).
- Attach the 523 to Modular Adapter in the slot on the back of the phone.
- Insert the modular plug from the 523 to Modular Adapter into the phone line side of the Super Tiny Dialer.
- Insert the short modular cord (included with the Super Tiny Dialer) into the telephone side of the Super Tiny Dialer.
- Insert the other end of the short modular cord into the 623-K jack.
The end result is that the dial tone goes into the 523 plug, through the Super Tiny Dialer, and into the network of the phone.
If the 523 is attached to the phone with spade lugs, no soldering is necessary.
Part Number: TLS4S Price: $3.59
PRIORITY LINE GRABBER™
Priority Line Grabber™
Line Sharing Device
Takes the line away from whoever's on it!
Line Powered!
The line powered Priority Line Grabber™ allows a phone to grab a phone line (whether it’s busy or not), to make an outbound call.
Great for sharing a phone line in applications like:
- Elevator Phone
- Pool Phone
- 911 Phone
- Modem
- Alarm System
- ATM
WARNING:
If used in a Life Safety application like a 911 phone, Elevator Phone or Pool Phone, be sure the customer agrees in writing to check the operation on a regular basis (or don't sell it to them). Something may go wrong with the line, the pair, the Priority Line Grabber™, the hot line or speed dialer, or the phone. An emergency isn't the time to find out there's a problem! Be sure to call the Police or Fire non-emergency number to let them know you're going to be testing, before the test.
NOTE: Inbound calls always go to the Non-Priority Phone. They can never go to the Priority Phone.
When the Priority Phone goes off-hook, the Priority Line Grabber™ hangs-up the line for a couple of seconds to get rid of any existing call, and then gives the Priority Phone a new dial tone. The Non-Priority Phone will be dead while the Priority Phone is in-use.
If the Priority Phone doesn’t have a dial, you’ll need a Super Tiny Dialer™ to automatically dial a phone number when the Priority Phone goes off-hook. You may have to add a pause or two at the beginning of the number you program into the dialer.
The Priority Line Grabber™ has a Dry Closure (low voltage, low current relay contacts) to allow you to set off a light, bell, siren or alarm to notify someone that the Priority Phone is being used.
There are 2 Jacks on the Priority Line Grabber™:
The easiest way to connect just about any modular device is our Critical+ Solid Wire Modular Cords, available in 2, 3 and 4 pairs (15 feet long wired straight through, so you can cut them in-half to get two cords).
NOTE: This is a Dealer Only item, since it must be installed correctly by a technician with the proper cords and jacks to function properly.
Part Number: MSC3L Price: $99.95 ||| 3+ Price: $89.95
CRITICAL+™ SOLID WIRE MODULAR CORDS
 |
Critical+™ Solid
Wire Modular Cord Telephone
Gray Color to Match |
 |
|
2 Pair |
You can't punch down stranded cable! |
4 Pair |
2 Pair, 3 Pair and 4 Pair Cords.
Carry some of these in your truck!
You can make solid wire modular cords yourself,
but this has got to be faster, easier and cheaper!
These are professionally made, and tested (which is why there's a mod plug on both ends).
Connect a modular device to a 66 or 110 Block, beanie it on to an existing wire...
Or lots of other uses that make these a must have in your truck!
Make your own Octopus Cable:
By plugging these Critical+ Solid Wire Cords into the mod jacks on a phone system, gateway, ATA or other modular device, you can tie wrap them in a bundle towards the 66 Block, where it will look neat when you cut the wires down. With an Octopus Cable, you'll have extra wire for each of the mod cords, so your installation will look like a mess unless you spend a lot of time dressing the cable (somehow?).
2 PAIR 15 FOOT SOLID WIRE CORD
White/Blue and White/Orange pairs wired Straight Through to four pin modular plugs, so you can cut it in-half and get two 7.5 foot cords.
This CAT3 solid wire cord is wired with USOC wiring, with White/Blue on the middle pins, and White/Orange on the outside pins.
Part Number: SWI3A Price: $3.39
3 PAIR 15 FOOT SOLID WIRE CORD
White/Blue, White/Orange and White Green pairs wired Straight Through to six pin modular plugs, so you can cut it in-half and get two 7.5 foot cords.
This CAT3 solid wire cord is wired with USOC wiring, with White/Blue on the middle pins, White/Orange on the next two pins out, and White/Green on the outside pins.
Part Number: SWI3B Price: $4.39
4 PAIR 15 FOOT SOLID WIRE CORD - WIRED WECO (568B)
White/Blue, White/Orange, White/Green and White/Brown pairs wired Straight Through to an eight pin modular plug, so you can cut it in-half to get two 7.5 foot cords.
This CAT3 solid wire cord is wired with WECO wiring (568B), just like a patch cord for Ethernet.
Part Number: SWI3C Price: $4.89
PULSE TO TONE CONVERTER
NEW VERSION!
Pulse to Tone Converter
Use legacy phone equipment with lines that only works with DTMF!
Lets you use a rotary phone on a PBX, Key System, VoIP Adapter, Cable TV Phone Adapter, or other type of line that doesn't accept pulse dialing. Lets you use antique phones on a modern PBX!
Line powered. This NEW VERSION will work on lines that accept Rotary Dialing as well as Touch Tone. You won't get double digits!
This NEW VERSION doesn't send the pulses from the rotary phone to the phone line, so it should work with most fake phone lines that don't accept rotary dialing. The old version would send the pulses through to the line, followed by the DTMF digit, sometimes creating double digits or other problems.
NOTE: We have a limited quantity of the old version available at a discounted price, which would still work for you if they worked for you in the past.
Part Number: CID6K Price: $49.95 ||| 3+ Price: $47.95
PULSE TO TONE CONVERTER - OLD STYLE CLOSEOUT!
OLD STYLE Pulse to Tone Converter
LIMITED QUANTITY!
We can only sell these if you've bought them in the past and they worked for you.
Use legacy phone equipment with Modern Equipment that only works with DTMF!
Lets you use a rotary phone on a PBX, key system or line that doesn't accept pulse dialing. Lets you use antique phones on a modern PBX.
Line powered. Do NOT use on lines that accept Rotary Dialing, or you'll get double digits!
It definitely won't work if you can dial digits on your rotary phone, and the dial tone is gone when you're done dialing. You'll definitely get wrong numbers using this OLD STYLE Pulse to Tone Converter on that line if a rotary phone breaks dial tone.
LIMITED QUANTITY!
Part Number: CID6N Price: $29.95
TONE to PULSE CONVERTER
CAREFUL... NOT a Pulse to Tone Converter!
Tone to Pulse Converter
Use legacy phone equipment with lines that only works with PULSE!
Lets you use a tone phone on an old phone system or with equipment that only understands PULSE (rotary) dialing. Line powered.
NOTE: You probably DON'T need this! You probably need the Pulse to Tone Converter (above).
Part Number: CID6A Price: $53.95 ||| 3+ Price: $51.00
No Phone Needed...
Just Push the Button!
Goes off-hook when the button is pushed,
and dials the pre-programmed number.
The 1 Button ALERT Dialer is a single line, line powered dialer that will dial out on POTS lines or analog station ports. No external power or batteries are required.
Simply connect the 1 Button ALERT Dialer to an analog phone line or station port, push the White button, and it dials the pre-programmed phone number.
Mount the 1 Button ALERT Dialer in plain sight, or mount it under a desk.
It can dial the next desk, next door, the next city, or the next country... All you have to do is push the button!
Besides dialing a phone number, station number on a PBX, or even the page code for a phone system, you can program it to pause and then send more DTMF digits.
It can easily dial the "pager" number for a pager or cell phone, pause, then send a few digits that would indicate the location of the dialer.
Programming is done from a Touch Tone phone on the same line, or over the phone line from a remote location.
Remove the Button, and Trigger it Automatically!
You can trigger this dialer automatically with a dry-closure (just a short, no voltage). Have a device call you when something happens! Seeing the Caller ID is a good way of knowing what's happening. We can add wires instead of the Button for $5, or you can do it yourself (requires soldering). Just short the wires to make it call out.
In quantity, we can program the 1 Button ALERT Dialer with any desired number right from the factory, so you don't have to do any programming.
Part Number: MSC2A Price: $52.95 ||| 3+ Price: $49.95
Wire 1 or 2 Push Buttons to the 2 Button Super Tiny Dialer
Great for a Kiosk or Courtesy Phone
Pick up a Handset, and Push One of the Buttons to Dial
The 2 Button Super Tiny Dialer is a single line, line powered dialer (no external power or batteries required). Simply connect it in-series with a telephone (with or without a dial), short one of the two contacts, and it dials the pre-programmed phone number.
Use the 2 Button Super Tiny Dialer to dial one or two numbers by pushing a button (not included). This is handy for taxi, hotel, or other types of courtesy or emergency phones where you don't want to use a regular no-button Hot Dialer because the user would need to dial one of two different numbers.
Works great for Kiosks, Panel Mount Telephones and even regular telephones. Drill a hole (or two) for the button, mount the button, and put the 2 Button Super Tiny Dialer inside the phone, with the wires connected to the button(s).
The 2 Button Super Tiny Dialer has three wires coming out of the dialer (one is common), that you would short with a switch of your choice. When the handset on a telephone connected in-series with the 2 Button Super Tiny Dialer is lifted to get dial tone, and the user pushes one of the buttons, that programmed number will be dialed.
It's easily installed in-series with the phone line using a modular jack. Programming is done from a Touch Tone phone on the same line, or over the phone line from a remote location.
In quantity, we can program the 2 Button Super Tiny Dialer with any desired number(s) right from the factory, so you don't have to do any programming.
Part Number: CID7I Price: $53.95 ||| 3+ Price: $52.00
Handy Momentary Switch with Form C Contact
Fits in a 1/2 inch hole. Small, easy to push button doesn't take up much room behind the panel you mount it on!
Works great as a Push-to-Talk (PTT) or Push-to-Mute (PTM) button on a handset, to activate our 2 Button Super Tiny Dialer, or to operate anything that takes a momentary Form C contact (either Normally Open, or Normally Closed).Solder lugs for Common, Normally Open, Normally Closed (FORM C).
Available in Red and Black (below).
Part Number: WAL7S Price: $4.95 ||| 10+ Price: $4.49
Handy Momentary Switch with Form C Contact
Same as above, but in Black.
Part Number: WAL7R Price: $4.95 ||| 10+ Price: $4.49
SINGLE LINE PHONES with Dials
Use our Super Tiny Dialer to dial a number automatically when then handset is lifted, which makes it into a "Hot Dial" Phone. The dial pad will still be live after the call is connected, so the user can enter options into a Voice Mail or IVR.
The Super Tiny Dialer can be installed inside the phone, at the jack where the cord plugs into the modular jack, or in the phone room. We can install and program the Super Tiny Dialer into the phone for $10 above the cost of the phone and dialer.
These phones come with a built-in bell for incoming calls, an amplified handset, 12 foot handset cord, and 14 foot base cord (on the Desk Phone).
2500 SET WITH AMPLIFIED HANDSET - IVORY
BRAND NEW!
2500 Set with Amplified Handset
Makes a great Power Failure Phone!
Looks great in a hotel, office, or home!
Amplified (and Hearing Aid Compatible) K-Style Handset Mechanical Bell Ringer with On/Off Switch 14' Mod Mounting Cord 12' Mod Handset Cord Almond Color (Ivory) Data Port 2 Year Warranty!
Part Number: CLN6A Price: $20.95 ||| 10+ Price: $19.95
2500 SET WITH AMPLIFIED HANDSET - BLACK
BRAND NEW!
BLACK 2500 Set with Amplified Handset
Looks great in a hotel, office, or home!
Amplified (and Hearing Aid Compatible) K-Style Handset Mechanical Bell Ringer with On/Off Switch 14' Mod Mounting Cord 12' Mod Handset Cord Black Data Port 2 Year Warranty!
Part Number: MSC3O Price: $39.95 ||| 10+ Price: $37.50
2500 SET WITH AMPLIFIED HANDSET - RED
BRAND NEW!
RED 2500 Set with Amplified Handset
A Very Important looking phone!
Amplified (and Hearing Aid Compatible) K-Style Handset Mechanical Bell Ringer with On/Off Switch 14' Mod Mounting Cord 12' Mod Handset Cord Red Data Port 2 Year Warranty!
Part Number: MSC3P Price: $39.95 ||| 10+ Price: $37.50

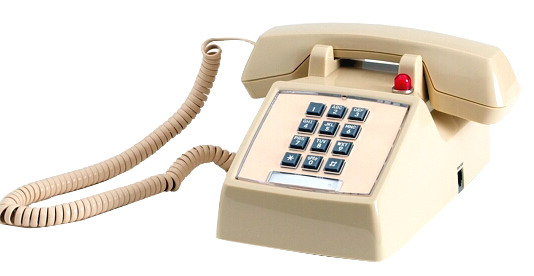

2500 SET WITH AMPLIFIED HANDSET and MESSAGE WAITING - IVORY
BRAND NEW!
2500 Set with Neon Message Waiting
Makes a great Power Failure Phone!
Looks great in a hotel, office, or home!
Amplified (and Hearing Aid Compatible) K-Style Handset Mechanical Bell Ringer with On/Off Switch 14' Mod Mounting Cord 12' Mod Handset Cord Almond Color (Ivory) Data Port Neon (90-140VDC) Message Waiting Light also acts as a Ringing Indicator 2 Year Warranty!
These will NEVER work for Message Waiting on a regular home or office phone line
(or Centrex) from the Phone Company, no matter what.
These will NEVER work for Message Waiting on a VoIP adapter that gives you
something that looks like a phone line, no matter what.
Part Number: CLN6B Price: $22.95 ||| 10+ Price: $21.95
WARNING!
All 2554 Wall Phones AREN'T Created Equal!
These phones look alike, but the one on the left is a piece of junk!
|
|
|
|
Handset Slammed Down TWICE! |
Handset Slammed Down TEN TIMES! |
I slammed the handset down hard on both of these phones. We sell the one on the right!
The Chinese can copy stuff, but they don't always understand what they're copying! It's pretty obvious you can't use regular plastic for the cradle on a wall phone!
Prevent Wall Phone Theft!
Modular Wall Phone Security Lock
Our 2554 Wall Phones are available with a Security Lock, which allows the installer to use a standard modular wall jack, but lock the phone to the wall with a screw, so it can't be removed.
2554 WALL PHONE - BLACK
Part Number: MSC1K Price: $29.95 ||| 3+ Price: $28.95
2554 WALL PHONE - RED
Part Number: MSC1L Price: $29.95 ||| 3+ Price: $28.95
2554 WALL PHONE - IVORY
Part Number: MSC1M Price: $29.95 ||| 3+ Price: $28.95

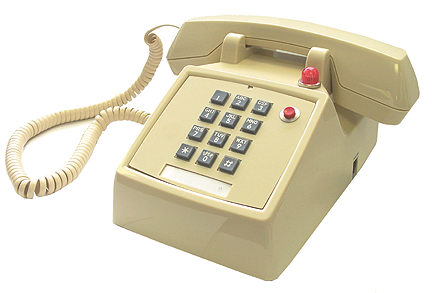

GROUND START POWER FAIL PHONE
Ground Start Power Fail Phone
Go off-hook, push the button on the phone,
and it ground starts the line to get dial tone.
Neon Lamp lets you see which phone is ringing,
if you have several phones side-by-side.
Incoming calls are answered normally when the phone rings and the neon lamp lights.
Ringer on-off switch (on the bottom of the phone) lets you leave the phone plugged in all the time, and turn the ringer on only during a power failure. The Ground Start Power Failure Phone has a regular mechanical bell ringer.
Data Port on side of phone works with a modem. To use the modem on the Ground Start line, push the button as you tell the computer to start dialing, then let it go after half a second or so.
You MUST put ground on the White/Orange (Black) wire at the frame, going to the phone. The ring side of the line must be on the Blue/White wire (the jack must be the correct polarity) for the Ground Start Button to work properly.
When used on a Loop Start line, it works like a standard phone... just go off-hook to get dial tone.
Part Number: MSC1H Price: $39.95
Get 100 Speed Dial Numbers!
It's just about impossible to find a Speed Dialer these days,
or even a phone that will hold a lot of Speed Dial Numbers!
Use the 100 Number Speed Dialer with any telephone with a dial. When you dial *00 through *99, it will dial the number you previously programmed.
Password protected programming is done locally from a phone connected to the Dialer, or remotely if you can get someone to answer the phone the Dialer is connected to, and stay off-hook while you're programming it.
Each speed dial number can hold up to 28 digits, including pause and hookflash (special combinations of stored digits).
Dealer Only! Sorry, we can't sell this to end-users.
Part Number: CID7D Price: $52.95 ||| 3+ Price: $49.95
100 NUMBER SPEED DIALER with AUTO ANSWER and CALL RESTRICTION
Now with Fraud Prevention!
Get 100 Speed Dial
Numbers...
and Program them Remotely!
Make an Airport or Hotel
Courtesy Phone Board
with this Inexpensive Dialer!
This dialer is made for Airport and Hotel Courtesy Phones. Use any standard single line phone with a dial with your board that lists taxis, hotels, bus companies or airlines, with speed dial numbers *00 through *99 for each of your customers.
You can remotely add, change or delete the number dialed for any of the 100 speed dial numbers (bins).
To dial, the user simply picks up the local phone, finds the code for the hotel or taxi he wants to call off the advertising board, and dials *00 through *99. No other digits need to be dialed.
This 100 Number Speed Dialer has Fraud Prevention built-in. If the number dialed isn't the password, the code to program a speed dial bin, or the entry to dial a speed dial bin, the phone will be cut-off (restricted) within about five seconds, preventing any calls that aren't in the speed dial list from going through.
This 100 Number Speed Dialer answers the phone line it's connected to on the first ring to allow programming, so it can't share a phone line for incoming calls.
Each speed dial bin can hold up to 28 digits, including pause and hookflash (special combinations of stored digits, which count for two digits each).
Custom configurations of our dialers are available in quantity.
Part Number: CID7M Price: $62.95 ||| 3+ Price: $59.95 ||| 10+ Price: $58.00
HANDSET AUDIO FEEDER™
Play Audio from your PC, MP3 Player, CD
or PA Amplifier into your Phone's Handset
Speed Dial from your PC or MP3 Player, or play
Pre-Recorded Greetings or Sales Pitches to a Caller!
Make the World's Biggest Speed Dialer using the
Handset Audio Feeder™, and your computer or MP3 Player!
Just plug it in between the handset cord and the phone!
Plug the included 3.5mm Stereo Cord with Stereo Y Adapter into your PC's sound card or an MP3 player's headset jack, and feed the audio into your phone
The Handset Audio Feeder™ works with any telephone that uses an electret type of microphone in the handset (which is in most modern phones), and where the dial is in the base (not in the handset).
To speed dial, you would need an application to "play" the Touch Tones back at the right speed, in the right order, with the right amount of pause between each digit.
A FREE Windows DTMF dialing application that lets you create a speed dial list is available at:
http://www.silverstones.com/DTMFDial.html
A shareware Windows DTMF dialing application that lets you create a speed dial list, which is around $30 to register, is available at:
http://www.phonedialerpro.com/#PDP
If you use Phone Dialer Pro, be sure to go into Options and click Dial without Modem, which will send dialing through the sound card. This program lets you assign a hot key to capture phone numbers off your PC screen, and even right click to dial a phone number from a web page.
You don't have to use any PC application to dial... Except a
wav or MP3 playing program, or an audio (MP3) player.
Just record yourself dialing a phone number with our Deluxe Handset Recording Adapter, save it to a name like MikeSandmanOffice.wav, and play it back when you want to dial. Many music players let you make categories for songs which you can use to sort your speed dial numbers, and they allow you to hit the first letter of the name of the file to find a particular tune (speed dial number in this case!).
Click HERE to listen to the speed dial for our office.
If you have a 256 Meg MP3 Player, which is about the smallest you can get today, you could store 2,500 of the wav files like the one above (which is around 90K). A 2500 number speed dialer that fits in the palm of your hand, and sits nicely next to the phone on your desk!
If you had a Handset Audio Feeder™, you just play that wav file (recording of the digits) from your computer or audio player, and it will dial the number in the recording. Again, to make an audio recording of the dialing, you'll need our Deluxe Handset Recording Adapter to record the dialing to sound files on your computer (and then transfer them to your MP3 player, if desired).
To play back a sales pitch or greeting (to save your voice!), you'll need the Deluxe Handset Recording Adapter attached to the handset jack of your phone to record yourself. You only need it while you're recording what you want to say, so you only need one per office if that's what you're using it for. That will let you use the sound recorder application that came with your computer to record the sales pitch.
By using the same handset or headset as you do on normal calls, the recording you make will sound like you're speaking live when you play that recording to the person on the phone. If you use a computer microphone or regular tape recorder to record the sales pitch, it won't match - and it will sound silly.
Notice that it sounds like Mike is talking on the phone, so if he clicks PLAY on his PC wav player, the caller wouldn't know the greeting was recorded. That would be very handy if you have to repeat a long sales pitch numerous times every day!
Because the Handset Audio Feeder™ connects to the handset cord (not the wall jack), it will feed audio into almost any phone made (with a dial in the base), including electronic, digital and VoIP phones (since the handset cord is always analog audio). It won't work with cordless phones or Trimline type phones with the dial-in-handset (the handset cord on those phones don't contain the same signals as a regular phone).
To send or receive audio to cordless and Trimline type dial-in-handset phones, use our Phone Line Audio Coupler, that connects directly to an analog phone line or station port (instead of to the handset jack).
You can send almost any audio through the handset on your phone! To play the audio from a PC or PA system through your phone's handset, all of the audio sent to the 3.5mm Stereo Cord will be heard by the person on the other end of the call. Connect it to the headset jack on a tape recorder, Line Out or Speaker Out on a PC sound card, or a 600 ohm line level output on a PA amplifier (don't connect it to a 70V speaker line output, but it will probably work OK on an 8 ohm speaker output).
There is no volume control on the Handset Audio Feeder™, so you'll need to adjust the volume on your computer or audio player for best match. There is a switch on the Handset Audio Feeder™ that allows you to turn on or off the audio feed from your PC, so the caller won't hear You've Got Mail or other sounds that normally play on your PC.
Because the Handset Audio Feeder™ is transformer isolated, it will prevent hum and distortion in the audio being sent from your computer or audio player.
NOTES:
The Handset Audio Feeder™ only sends the LEFT channel to the phone. This shouldn't matter in most cases, but you may have to switch the computer or audio player to MONO in your particular application. You can place a special order for a Handset Audio Feeder™ that sends a mono signal from both the LEFT and RIGHT channels to your handset, but if you plug it into your PC with the included Stereo Y Adapter, you'll always hear a MONO signal from the PC's speakers - that are also plugged into the Stereo Y Adapter.
Some VoIP phones don't have sidetone (you can't hear your own voice in the receiver while you're speaking), in which case you won't hear the audio that's going down the phone line (but they will hear it on the other end of the call).
Custom and Private Label versions available.
Part Number: MSC3M Price: $39.95 ||| 3+ Price: $38.80
UNIVERSAL HANDSET CORD UNTWISTER™
 |
 |
|
What the heck is wrong
with |
The Universal
UnTwister™ tries to |
There are a lot of handsets where the engineers stuffed the jack wayyy inside the handset. On some of them, you actually have to remove screws and take the handset apart to replace the cord! I'm guessing that these phones were designed in countries where they've never actually used a phone.
Universal Handset
Cord UnTwister™...
Our Universal
Handset Cord UnTwister™ has a short cord that will work with any phone, with or without a recessed jack.
Since there's a cord instead of a solid nose piece (plug), the UnTwister™ is not likely to break if the handset is accidentally dropped.
NOTE: This is not like the cheap white ones on the market that don't spin (so they're useless!).
Part Number: MON9M Price: $4.59 ||| 10+ Price: $3.99
THIS BOX DOES EVERYTHING!
Well... Almost Everything!
The Ultimate Call Handler uses One Phone Line, which MUST have the 3-Way Calling Feature from a US Phone Company. Because it uses the Phone Company's 3-Way Calling feature to connect calls together, the volume on all calls is perfect (unlike other devices or phone systems that use two separate phone lines, which cause serious low volume problems).
While you can't do all of these things at the same time with the Ultimate Call Handler, you can use two features - like the WATS Extender feature by simply entering your PIN number before the Ultimate Call Handler starts to dial when Diverting, Transferring or doing a Call Back. Very slick!
- Call Bridge - WATS Extender
- Call into unit, enter security code, dial anywhere in the world!
- Dial #8 to make another call... without hanging up!
- The Caller ID that's sent is for the line the Ultimate Call Handler is connected to.
- Gives you a perfect connection.
- Call Diverter - Call Forwarder
- Reprogram the destination number anytime, from anywhere.
- Record 8 second "greeting" telling caller to "wait a moment."
- Can divert to a second number if no answer on the first one.
- Eliminates phone company's "Call Forwarding" charge.
- Set to Divert on 1st to 10th ring (gives you time to pick up the line).
- Call Transfer to Another Number from PBX or Centrex Lines
- Requires Centrex, or a PBX "CO Hookflash" feature code on the analog station port the Ultimate Call Handler is connected to.
- Can transfers a caller directly into a voicemail box after X rings.
- Requires no integration between voicemail and phone system.
- Allows combination of Call Forwarding to a number, with Call Transfer to voicemail extension (up to 5 digits) if no answer!
- Call Back - International Long Distance Saver
- Record 18 second "message" (remotely), telling hotel operator to transfer the call to a particular room (repeated once).
- Dial into the ULTIMATE CALL HANDLER from the Call Back number, and hang up after 1 ring. It then calls you back so you can enter your PIN to make a call.
- Dial #8 to make another call... without hanging up.
- Reprogram the Call Back number and "message" anytime.
- Also works as Call Forwarder (with 8 second greeting), sending callers to the same foreign number used for Call Back.
- More privacy than using a "Call Back" service provider.
- Savings of up to 80% over foreign phone company billing.
Great for Answering Services... Put one at each Subscriber's phone, to see his number on Caller ID (you'll know how to answer the line!).
Great for Transferring Calls OFF PREMISE... Route calls through an Automated Attendant on a PBX or Key System, with NO Loss of Volume!
To transfer calls off-premise, you need to have 3-Way Calling on the CO lines, route the call to an analog port, and know the code to do a CO hookflash from an analog station (something like #6 on Panasonic). The will be no loss of volume when you transfer calls this way.
Features:
- Non-Volatile EEPROM Memory
- Programmable 4 digit security code
- Program on-site or remotely
- No computer connection - Everything is DTMF
- Works with fax machines and modems
- Disconnects based on call timer duration (hit any digit if you hear the warning tone), CPC signal, or 2.5 minutes of silence
- Operates from 110V AC Power Cube (included)
- FCC Registered
When using the Ultimate Call Handler as a WATS Extender or during programming, you are prompted with beeps. There are no voice prompts (to prevent hackers from accessing your line), so you'll have to use the Ultimate Call Handler for a day or two to get used to its operation. A "technically challenged" person may never be able to use the Ultimate Call Handler.
Callers who are simply being transferred or diverted won't hear any beeps or have to enter anything, they'll just be transferred like they were calling the second number directly. There is a short delay while the Ultimate Call Handler quickly hookflashes and dials the second number, during which you can record a short message like Please Wait One Moment if you'd like.
IMPORTANT NOTE: The Ultimate Call Handler is made to use standard US style 3-Way Calling, where you can hookflash as soon as you're done dialing the second party's phone number. In other countries, and with most VoIP devices, after you dial the phone number for the second party, you MUST wait for the second party to answer before hookflashing, so the Ultimate Call Handler won't work on VoIP or in other countries where you can't hookflash until the outside party answers.
Part Number: WAL3A Price: $189.95
AREA CODE DIALER... Pre-Programmed for YOUR Area Code
Dial 7 Digits for Your Local Calls!
Pick up the line and dial your phone number. If it's a local call, or any area code that you dial often, just dial the 7 digit phone number. The Area Code Dialer will listen for the 7 digit number, hang-up for a moment, and then redial the phone number with 1 plus the Area Code - or just the Area Code added to the 7 digit number you dialed.
It all happens a moment after you're done dialing the 7 digits!
The Area Code Dialer ignores all other numbers: 10 or 11 digits, 3 digits (like 911), or 1 digit (like the Operator). It will only add the area code you need to a 7 digit number.
We program it for you! You just tell us the area code, and whether to dial a 1 first. That's it!
The Area Code Dialer is line powered (no external power or batteries required). It's Modular in and out, and simply goes in-series with a regular analog phone line and a phone or phone system CO port.
If you put the Area Code Dialer on the CO line in-front of a phone system, it will work for all the phones using that line on the system.
If you put the Area Code Dialer on the CO line in-front of all the phones in a house, it will work for all the phones using that line. Even a Burglar Alarm or another type of dialer!
Part Number: MSC5Q Price: $69.95
Automatic LONG DISTANCE REDIALER
Redirect Any Phone Number That's Dialed...
to Anywhere!
The Automatic Long Distance Dialer™ (Redialer) is a single line, line powered dialer (no external power or batteries required).
The Long Distance Redialer™ is designed to let a user dial a phone number, which is then automatically modified based on the rules you've programmed into the dialer.
The most popular example, hardly ever used these days due to cheap flat-rate long distance, is using a long distance service which requires the user to dial an 800 number for the service, a PIN (account) number, and then the long distance phone number (still used for Calling Cards today).
With the Long Distance Redialer™, the user would simply pick up a phone and dial a long distance number, like 1-630-999-9999. The Long Distance Redialer™ would be programmed to redirect all calls that started with a 1 (long distance). The user would hear a few seconds of silence as the number he dialed is modified, and dialed out.
The Long Distance Redialer™ would hang up for a second (to get new dial tone) after the user finished dialing the 11 digits, wait a second for dial tone, dial 1-800-911-1111, wait a couple of seconds, dial 123456 (the PIN number), wait a second, and dial the original number the user dialed (that was temporarily stored in memory), 1-630-999-9999.
It can listen for any combination of digits dialed (up to 16), and when recognized hang up the line for a moment and dial a pre-programmed number associated with those digits. The user is split from the line after the digits are recognized and the programmed number is dialed (he doesn't hear the re-dial process).
All call timings are programmable (on and off-hook, DTMF duration etc.). It's also compatible with PBX and Centrex lines.
Sick of dialing 1+ the local area code? One neat application is to automatically add an area code to a 7 digit number! It accepts the 7 digits, hangs up, and then dials out putting 1 and an area code on the front of the 7 digit number you dialed. Or just have the Long Distance Redialer™ add a PIC code (like 1010288 for AT&T) to the beginning of every long distance number dialed.
It's easily installed in-series with the phone line using a modular jack. Several password protected programming methods are available, including remote or on-site programming via DTMF phone. Programming of this device should only be done by experienced technicians.
NOTE: When the Automatic Long Distance Redialer hangs-up the line so it can dial the modified phone number, the loop current to the phone system will be interrupted momentarily. Some phone systems could interpret that "open" as a CPC signal, and disconnect the caller from the trunk they're making the call on. Most phone systems won't drop the call, since the user is still off-hook on their phone. This isn't an issue when using a regular telephone connected directly to the phone line.
Use our PC Grabber Deluxe Model 3 for programming multiple dialers with the same or similar numbers, automatically. Just write a script, then play it into the dialer (on-site or remotely).
ANOTHER NOTE: Because the Long Distance Redialer™ requires complicated programming from a rather cryptic programming guide, and we don't offer programming support, we only sell this Dialer to dealers or phone men who have programmed other long distance dialers (like the Mitel Smart Dialer, below). If you have a specific application, we may be able to write the program for you. That way you simply enter the program we give you from a touch tone phone. Programming ranges from $25 to $50, depending on the complexity of the application.
Want to see if you can program it yourself? Click HERE to see the Long Distance Redialer™ Manual in PDF format
Part Number: CID6O Price: $52.95 ||| 3+ Price: $49.95
MITEL Smart-1 with PAV: 4 Port Automatic Dialer
4 Port Mitel Smart-1 Dialer with PAV
The Mitel SMART-1 PAV (Positive Account-Code Verification) is a 4 Line Automatic Dialer / Call Controller.
The Mitel SMART-1 PAV allows users to dial a code to access up to 100 numbers of speed dialing. It also will redirect calls based on the rules you program, and only allow calls after the user enters a specific account code.
An RS-232 connection allows the Mitel SMART-1 PAV to output the phone numbers and account codes dialed to a printer or PC running a communications program.
Password protected programming via either DTMF phone, or an RS232 interface. Programming instructions are included on CD.
These dialers haven't been made for several years. They are tested, in out-of-service condition. This is an incredible value for a 4 Line Dialer!
The Mitel SMART-1 PAV is AC powered (comes with a power cube).
NOTE: Because the Mitel SMART-1 PAV requires complicated programming from a rather cryptic programming guide, and we don't offer programming support, we only sell this Dialer to dealers or phone men who have programmed long distance dialers before. If you have a specific application, we may be able to write the program for you. That way you simply enter the program we give you from a touch tone phone. Programming ranges from $50 to $100+, depending on the complexity of the application.
Want to see if you can program it yourself? Click HERE to see the 126 page Smart1 Manual in PDF format (1.6meg)
Part Number: CID4B Price: $99.95
Block All Outgoing Calls!Perfect for Blocking All Calls from
a Satellite Receiver or Cable Box!
It doesn't matter what you or the Cable Box dials, the
Outgoing Call Blocker will hang-up, and dial
1-800-911-1111 (a non-working 800 number).The Outgoing Call Blocker will always
allow 911 calls to go through.
The Outgoing Call Blocker is a single line, line powered dialer (no external power or batteries required). Simply connect it in-series with one or many telephones, modems, fax machines etc. on a telephone line, and it sends the call to a non-working number after someone (or something) dials any number (it always allows 911 calls).
This is the simplest Toll Restriction we've got. It's the easiest way to prevent a Satellite box from phoning home! Since the Outgoing Call Blocker allows incoming calls to your Satellite box, you can see Caller ID on your TVs if your Satellite box offers that option. Satellite boxes generally only call out, they can't receive calls from the service provider.
The Outgoing Call Blocker is easily installed in-series with the phone line and the device you want to block, using a modular jack and cord.
Part Number: CID5E Price: $52.95 ||| 3+ Price: $49.95
411 Calls are Ridiculously Expensive!Does your blood pressure go up
every time you get your phone bill,
and see all the 411 calls?
You can get most of the numbers you need by looking them up
on the Internet... FOR FREE!
If you've told everybody not to dial 411 for Information or Directory Assistance, and they're still doing it and costing you a bundle, it's time to put a stop to it.

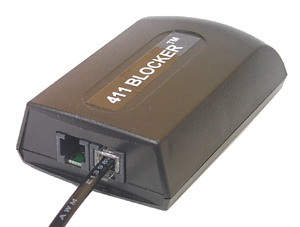

The 411 Blocker™ is a single line, line powered dialer (no external power or batteries required). Simply connect it in-series with one or many phones (or a phone system) on a telephone line, and it sends the call to 0 (the Operator) if someone dials 411. Luckily, Operator is still a free call (for a while?).
You can program the 411 Blocker™ to send calls to a number other than the Operator if you'd like, by programming the number that the 411 Blocker™ dials with a regular touch tone phone. Programming is password protected.
The 411 Blocker™ will prevent casual abuse of 411, which could cost well over $1 a call. Users will still be able to dial Long-Distance Information (like 1-630-555-1212), or local information by dialing 555 or 555-1212. It would also allow 1-411, if that works in your particular area for Information.
The only number the 411 Blocker™ blocks is 411. All other numbers will go through normally.
The 411 Blocker™ is easily installed in-series with the phone line using a modular jack and cord.
NOTE: When the 411 Blocker™ hangs-up the line so it can dial 0 (Operator), the loop current to the phone system will be interrupted momentarily. Some phone systems could interpret that "open" as a CPC signal, and disconnect the caller from the trunk they're making the call on. Most phone systems won't drop the call, since the user is still off-hook on their phone. If the phone system does drop the call, the 411 call will simply be restricted, instead of being diverted to 0 (the Operator). This isn't an issue when using a regular telephone connected directly to the phone line.
If you've got a business, you can probably pay for these in a month or two!
Part Number: MIS7K Price: $52.95 ||| 3+ Price: $49.95
Have the Police Paid you
a Surprise Visit?Don't like surprise visits from the Police?
In most communities if you dial 911 accidentally,
even if you tell them "Nevermind," they're
going to come out to see if you're OK.If you, your dog, or your kids dial 911 accidentally a lot,
the 911 Blocker™ could save you some Surprise Visits!If your community doesn't have 911, you can program the 911 Blocker™ to call
the regular Emergency phone number at your local Police Department...
So you get 911 service!
The 911 Blocker™ is a single line, line powered dialer (no external power or batteries required). Simply connect it in-series with one or many phones (or a phone system) on a telephone line, and it sends the call to 0 (the Operator) if someone dials 911. You should probably check to see if an Operator really answers when you dial 0 from your particular phone line (they might be answering in India after 20 rings).
Prevent 911 Hangups!
In some communities, the Police may threaten to arrest you for making too many accidental calls to 911. The cost of the 911 Blocker™ is a lot less than even a half hour of your attorney's time, to say nothing of the bond to get out of jail, or a fine.
For some reason, a lot of the 911 hang-ups are from fax machines. If you have that problem, the 911 Blocker™ might be a good idea for your fax line.
You can program the 911 Blocker™ to send calls to a number other than the Operator if you'd like (like the local non-emergency Police number), by programming the number that the 911 Blocker™ dials with a regular touch tone phone. Programming is password protected.
The only number the 911 Blocker™ blocks (or diverts) is 911. All other numbers will go through normally.
The 911 Blocker™ is easily installed in-series with the phone line using a modular jack and cord.
If your community doesn't have 911 service, and you send 911 calls to the regular (seven digit) Emergency phone number, be sure the local Police Department has Caller ID on their lines. At least they'll be able to tell what phone number you're calling from. If your Police Department doesn't have Caller ID equipment on their Emergency lines, we carry a fairly inexpensive device that will show the Caller ID for up to 8 phone lines on a computer screen, while logging all of the calls to a flat file on the PC. It's perfect for smaller Police Departments without the budget for E911 equipment. The Caller ID device works on regular phone lines and 911 phone lines, but not E911 lines (Enhanced 911), which use a different technology.
NOTE: When the 911 Blocker™ hangs-up the line so it can dial 0 (Operator), the loop current to the phone system will be interrupted momentarily. Some phone systems could interpret that "open" as a CPC signal, and disconnect the caller from the trunk they're making the call on, which would totally block the 911 call from going anywhere. Most phone systems won't drop the call, since the user is still off-hook on their phone. If the phone system does drop the call, the 911 call will be restricted, instead of being diverted to 0 (the Operator). This isn't an issue when using a regular telephone connected directly to the phone line. Be sure to check the operation of the 911 Blocker™ if installing it in-front of a phone system, before you leave!
If you use the 911 Blocker™ and there's a real emergency... You, a family member, or visitor may not realize why 911 doesn't work. Use caution when installing / programming / using this device!
Like any electronic device used for emergency purposes, it should be tested on a regular basis.
Part Number: MIS7L Price: $52.95 ||| 3+ Price: $49.95
Our Toll Restrictors look like a standard jack, but all phones connected to that "jack" will be limited to dialing numbers that are programmed to be allowed by the Toll Restrictor.
Our Toll Restrictors are line powered. No external power supply is necessary. They have a non-volatile memory that retains all programming, even if the Toll Restrictor is disconnected from the line.
If you want to restrict more than one phone on a single line, put the Surface Mount version in the phone room, and connect all of the station cables (phones) to it. It will also work in-front of a phone system to restrict a particular CO line, or on an analog station port to restrict a single line extension on the system.
These devices require experience in programming toll restriction and allowed tables. They are programmed from any touch tone phone connected to the unit.
The concept behind our Toll Restrictors, which use an "allowed list," is that you limit the number of digits that can be dialed to make a call. If you want to allow only local 7 digit calls (default), you would restrict the number of digits dialed to 7 digits. If you then want to allow calls to one nearby area code, lets say 1-630, you would program 1630 into the allowed table. Then users would be able to dial any numbers following 1-630, but would otherwise be limited to 7 digits.
You could allow any number in a particular area and exchange code, like 1-630-980, by programming 1630980 into the allowed table. In the same manner, you could limit the number of digits to 6, and then allow 16309807710 to permit the user to dial only one phone number.
This Toll Restrictor does not have a "restrict table". You can't simply give it a list of phone numbers that you want to restrict, and allow everything else. It only has an allowed table, that's limited to 200 digits (1-630 is 4 digits).
- Installs Easily with Screw Terminals for Phone Line
- Powered from the Phone Line - NO Other Power Required
- Remembers Restrictions when Disconnected from Phone Line
- 200 Digit Memory for Allowed List
- Works with Standard Tone and Rotary Phones (not for electronic system phones)
- Looks Like a Regular Wall Jack
- Owners Code can Bypass Restrictions
- User can Change Password
- Always Allows 911 to Pass
- Works on 48V phone lines, and on most 24V station ports
- Built-in Lightning Protection
Click here to view Toll Restrictor Programming Instructions.
NOTE: Because the Toll Restrictor requires programming of an allowed table, and we don't offer end-user programming support, we only sell Toll Restrictors to dealers or phone men who have done toll restriction programming on phone systems before.
SURFACE Mount Toll Restrictor
Surface Mount Toll Restrictor
Part Number: SWI5A Price: $49.95 ||| 3+ Price: $47.95
FLUSH Mount Toll Restrictor
Same as Surface Mount unit, but built into a Flush Mount Wall Jack
Part Number: SWI5B Price: $49.95 ||| 3+ Price: $47.95
SURFACE Mount Toll Restrictor with CALL TIMER
Adds feature to limit the time on ALL (both incoming and outgoing) calls.
Programmable from 1 to 60 minutes.
Part Number: SWI5C Price: $59.95 ||| 3+ Price: $57.95
FLUSH Mount Toll Restrictor with CALL TIMER
Part Number: SWI5D Price: $59.95 ||| 3+ Price: $57.95
Electronic Gray Plastic Dial replaces the dial in most standard single line 2500 and 2554 sets.
It also works in 2564 1A2 sets.
NOTE: This dial does not work in 2565 sets, or other 1A2 sets made to work with a speakerphone, since those dials have extra contacts for muting the speakerphone while dialing, and have more wires.
This dial should be installed by an experienced telephone man, since it will be necessary to determine the placement of the wires in the phone from both the print that comes with the dial, and the print for the particular telephone (not included). It's not plug and play.
Part Number: SWI3Q Price: $18.99
ELECTRONIC DIAL - METAL with METROPOLITAN NUMBERING
